Project: Timber Framed Barn Residence & Meeting Space
Architects: Leupold Brown Goldbach Architekten
Location: Tuntenhausen, Germany
Area: 7,965 sf
Year: 2019
Photographs by: Jonathan Sage
Timber Framed Barn Residence by Leupold Brown Goldbach Architekten

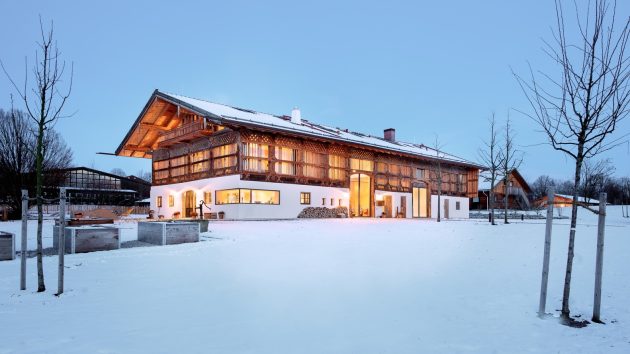

This project by Leupold Brown Goldbach Architekten in Tuntenhausen, Germany involved reviving a 1773 barn by delicately placing a three-story architectural intervention made of room-sized wooden cubes within the timber structure. The cubes were designed to create a sculptural effect that filled the volume of the barn up to its roof, while allowing for the original characteristics of the barn to remain intact.
The project also featured natural landscaping materials that corresponded to the rural context, and an intelligent energy and climate concept that utilized passive measures for healthy living and working conditions with minimal energy consumption. By using renewable raw material wood, CO2 emissions were reduced to a minimum. Overall, this project successfully converted an old agricultural building into a modern residence and meeting space while preserving the historic craftsmanship of the original structure.
This project is the result of reviving a 1773 barn built of hundreds of timber elements that had been disassembled, stacked, and stored for over 40 years. This painstaking process required tremendous courage and exquisite craftsmanship from the timber framers whom rebuild it.
The barn was originally an agricultural building used for storing equipment. In principle, the interior was a coherent volume of space without subdivisions such as partitions or even floor ceilings. The beautiful timber frame latticework was an open structure with planks attached on the inside. It was openly ventilated and served only as protection against rain, snow, and sun, but not as a thermal envelope. Daylight was originally not needed in the interior resulting in spaces being rather dark and foreboding. The challenge was to convert this beautiful shell into a residence & meeting space without destroying the magic of the historic craftsmanship.

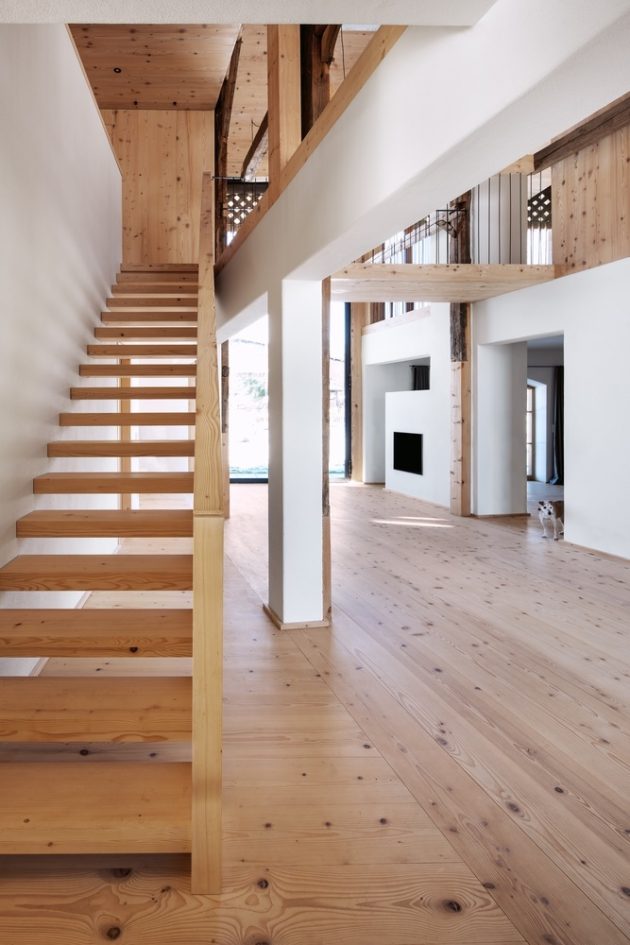

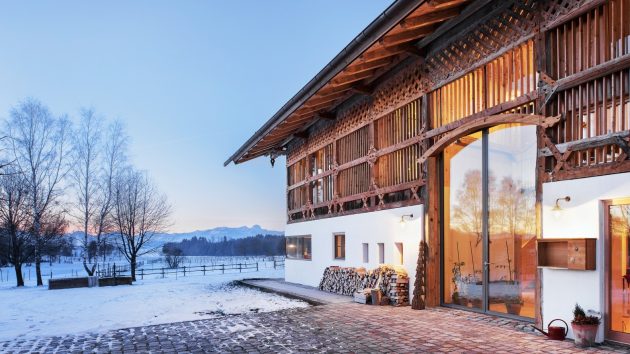

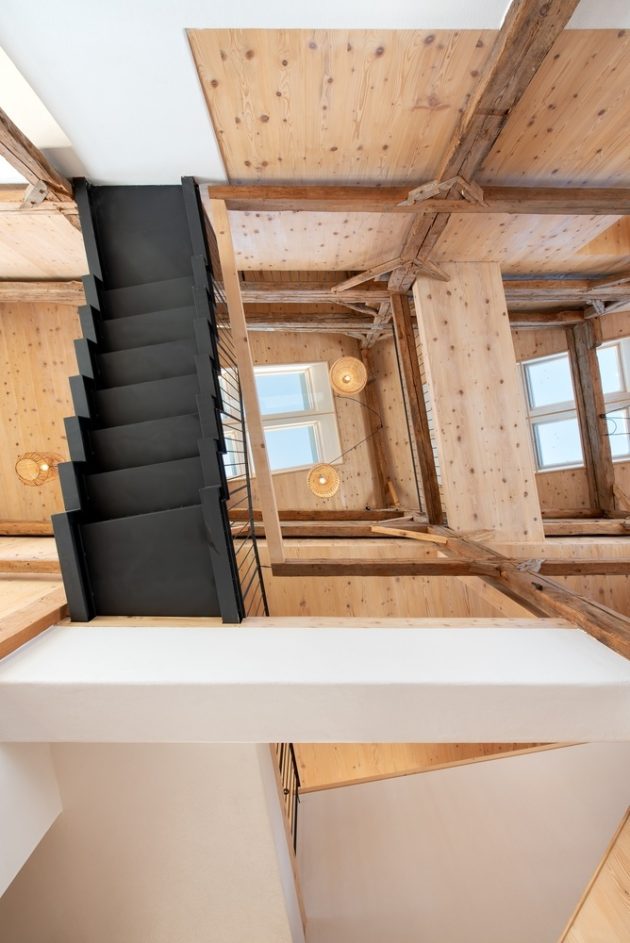

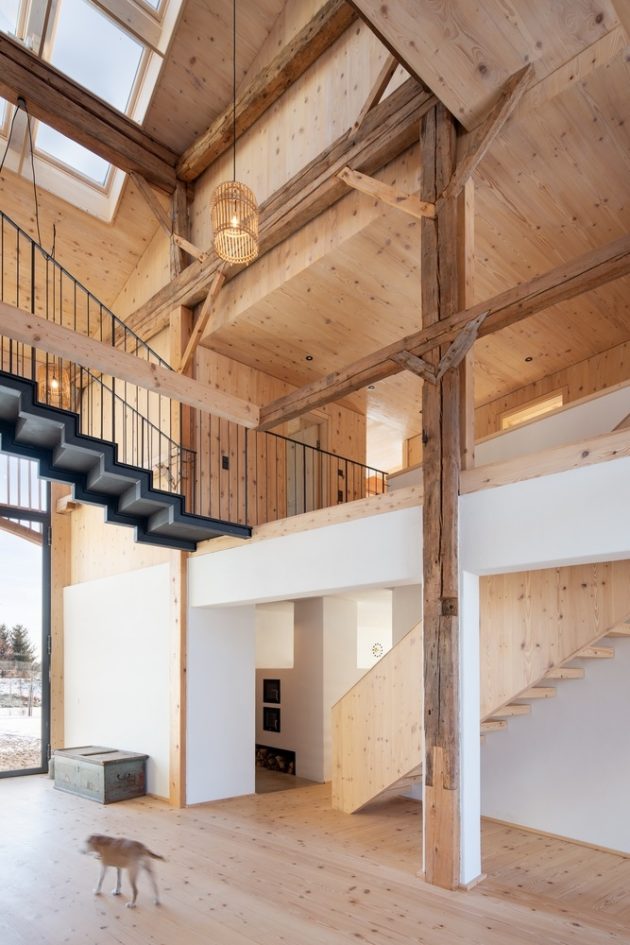

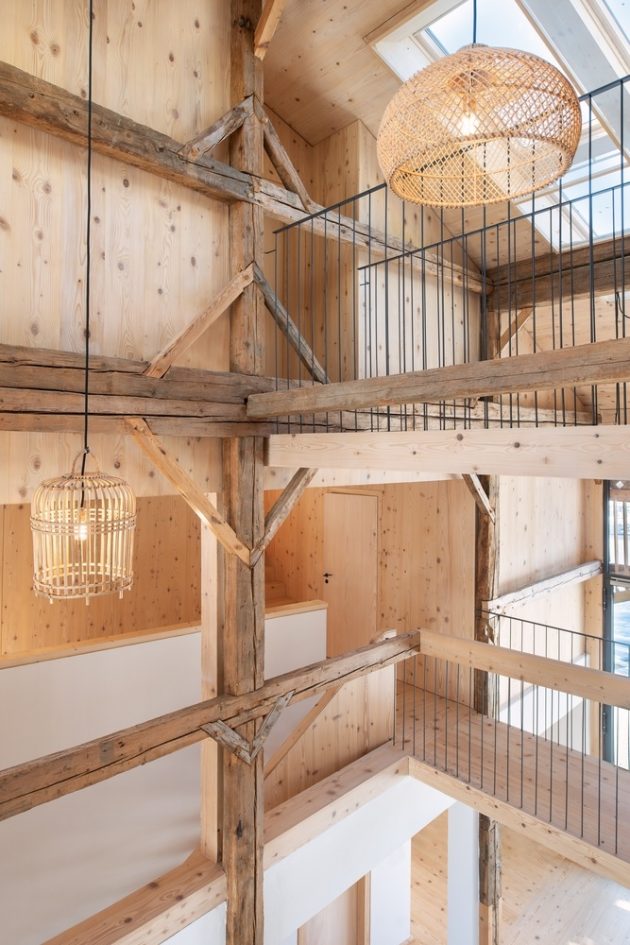

To divide the historically open space, a three-story architectural intervention made of room-sized wooden cubes was delicately placed within the timber structure. The cubes, shifting as they stack on one-another creates the impression of a three-dimensional sculptural that fills the volume of the barns up to its roof. The homogeneous silver fir surface of the cubes contrasts the latticework of the Timber frame complimenting the historic construction with a modern intervention. The two historic characteristic passageways, called “tennen”, that cross the barn are left unobstructed with only light bridges spanning them on the upper levels. The original double barn doors are long lost, but they are replaced with transparent large glass gates. This allows the interior and exterior as a path lead straight out of the ground floor toward a picturesque adjacent lake.

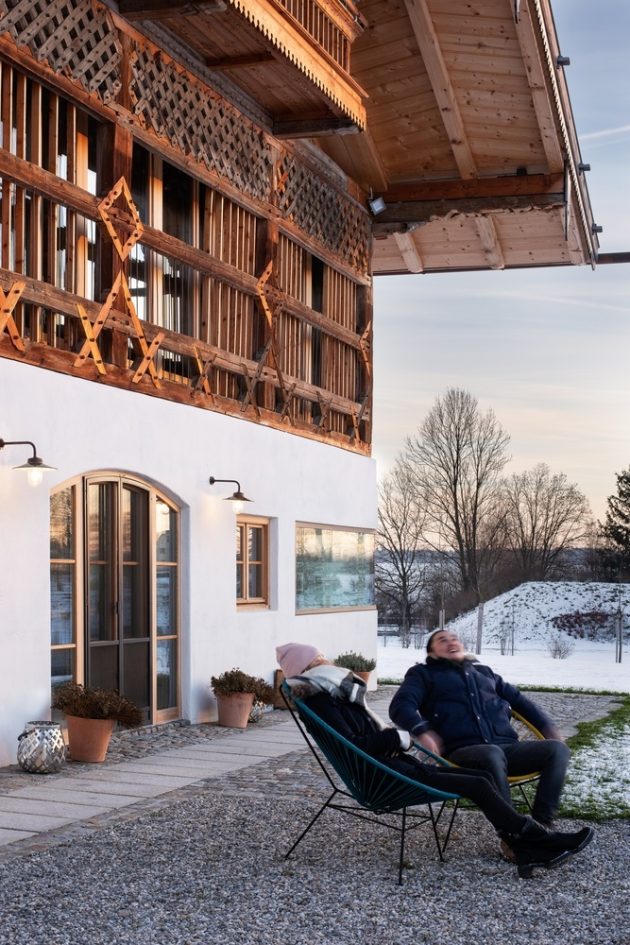

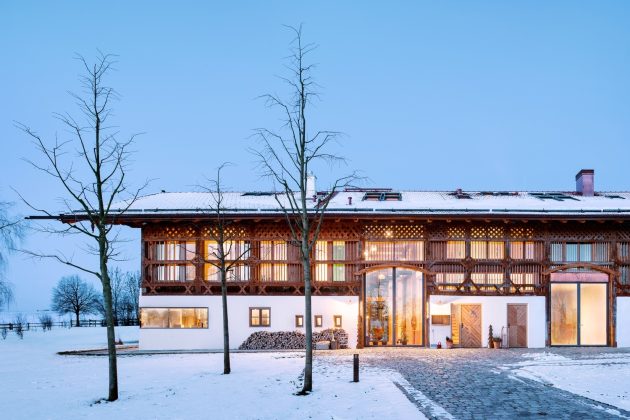

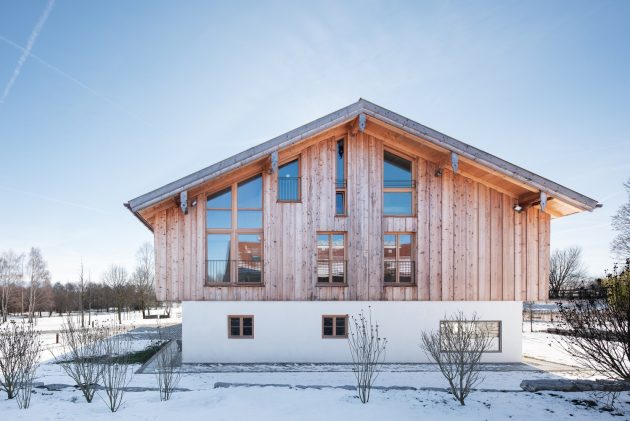

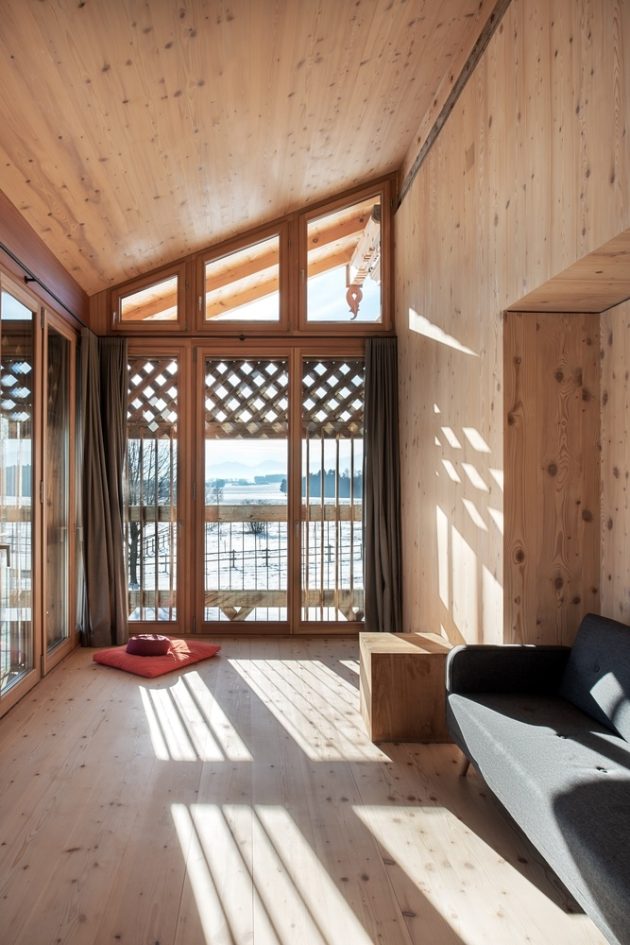

On the interior of the upper level latticework of the barn, glazing was installed to allow transparency while creating a thermal envelope. As a result, daylight penetrates into the interior while the beautiful historic components can also be experienced from both inside and out. The originally small openings in the ground-floor masonry were replaced by larger openings. These “inaccuracies” reveal themselves as modern alteration having contrasting formats and minimalistic details.

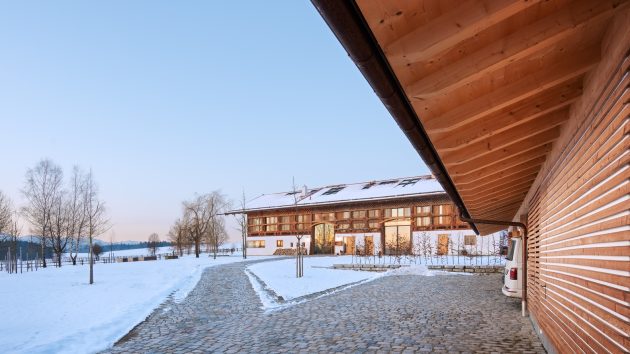

The landscaping if accomplish with natural materials that correspond to the rural context. An elongated outbuilding in front, which houses the technical spaces, storage rooms and carports, frames the entrance area and forms a courtyard with the barn.
Because of an intelligent energy and climate concept, passive measures are used to achieve healthy living and working conditions with minimal energy consumption. Roof overhangs and an integrated external sun protection reduce the solar entry into the building. In summer the building can be ventilated completely naturally. Large roof windows in the threshing floor are used for cooling by effective night ventilation. Gypsum fibre boards integrated in the timber construction serve as thermal mass and lead to pleasant room temperatures even at higher outside temperatures. In winter, the building is adequately supplied with draft-free fresh air via controlled living space ventilation with efficient heat recovery. The heat is brought into the room via low-temperature panel heating under the floorboard. The heat is supplied by a pellet boiler in the adjacent warehouse and also serves as a local heating network for other buildings. By using the renewable raw material wood, CO2 emissions are reduced to a minimum.
