Project: Raw House
Architects: Taller Estilo Arquitectura
Location: Merida, Yucatan, Mexico
Area: 1,614 sq ft
Photographs by: David Cervera
Raw House by Taller Estilo Arquitectura

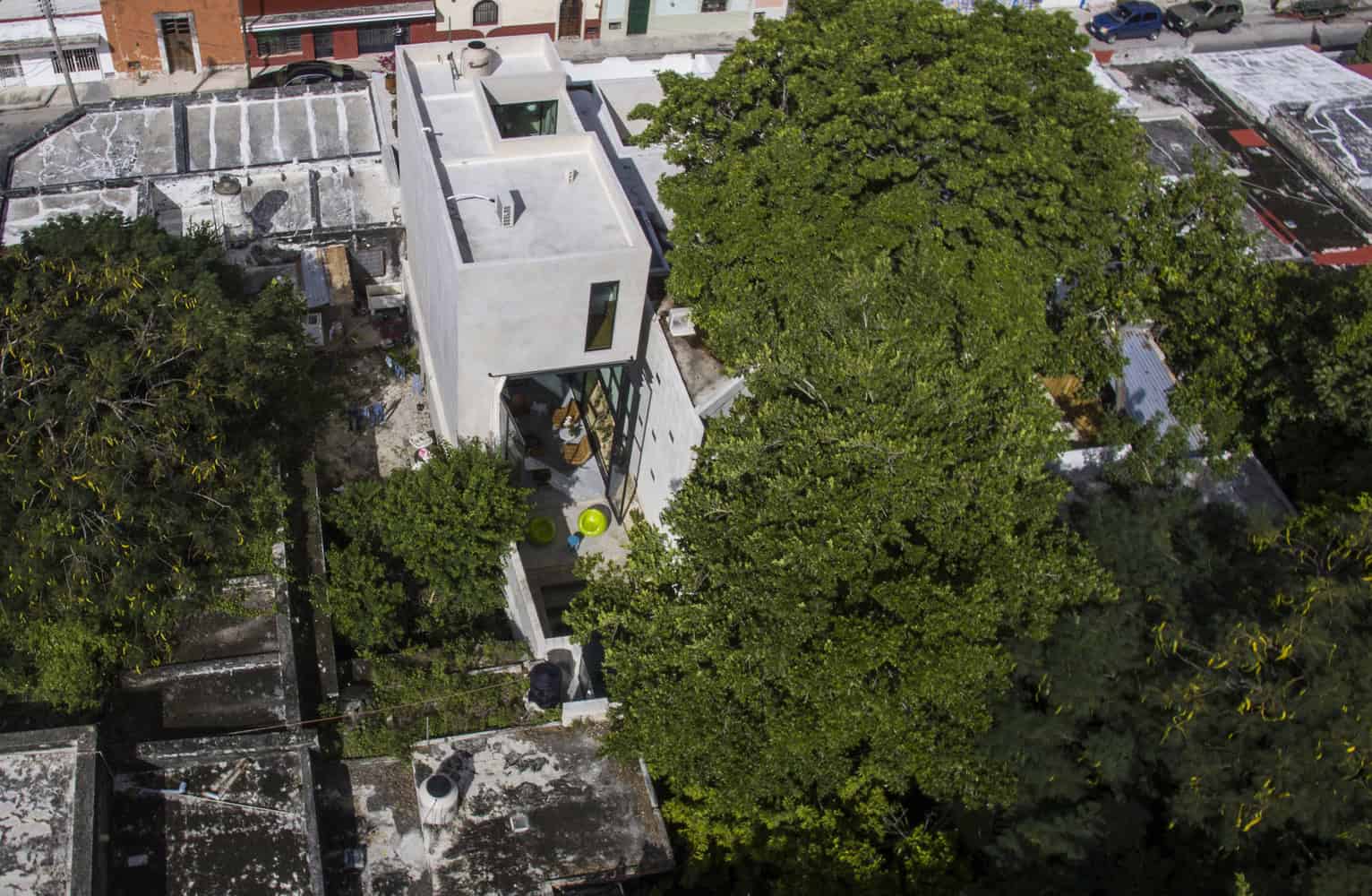

Taller Estilo Arquitectura have designed a contemporary, three story concrete residence in Merida, Mexico. The Raw House or Nude House as the architects call it, is placed on a limited plot of land in the city’s tightly packed Santiago neighborhood.

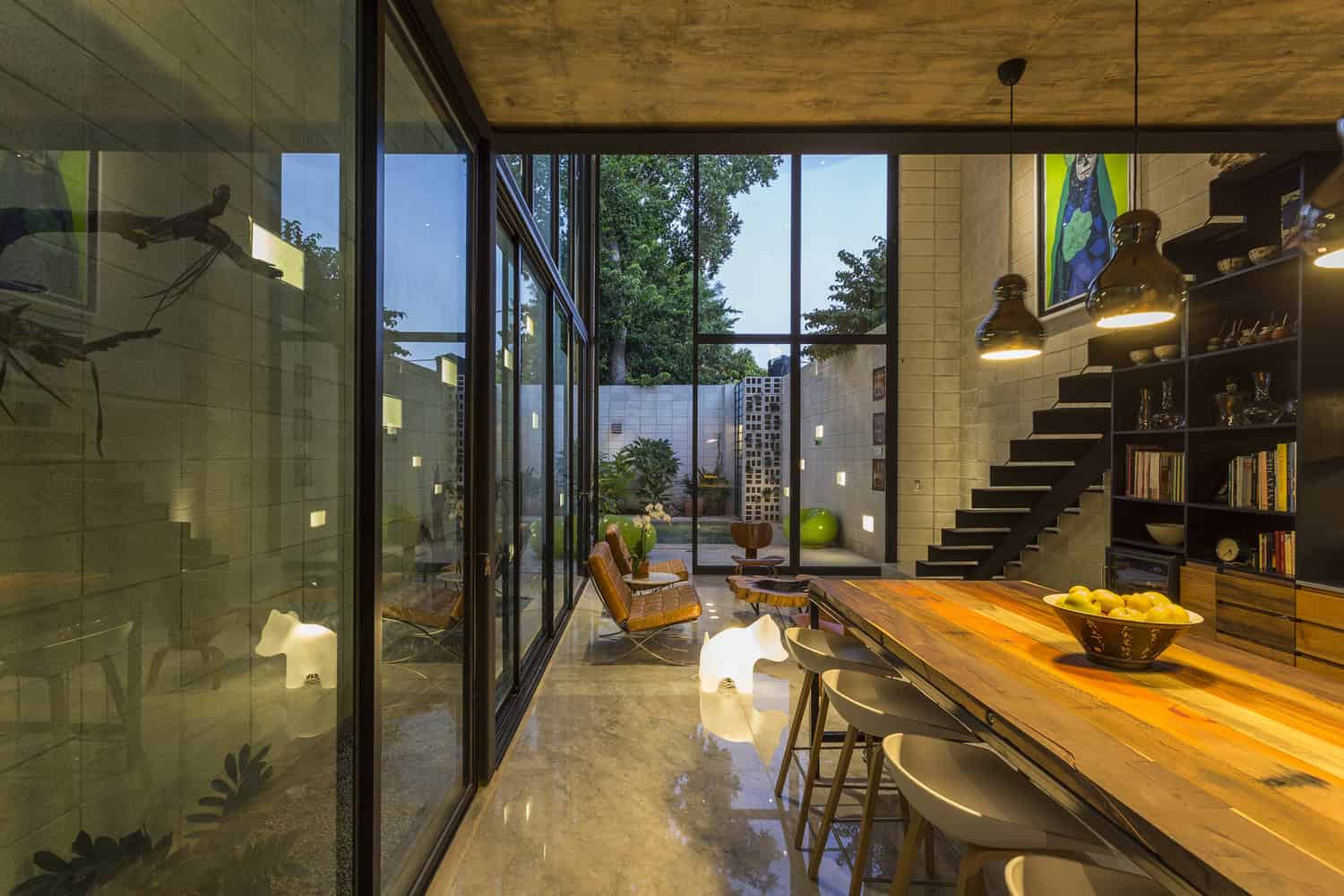

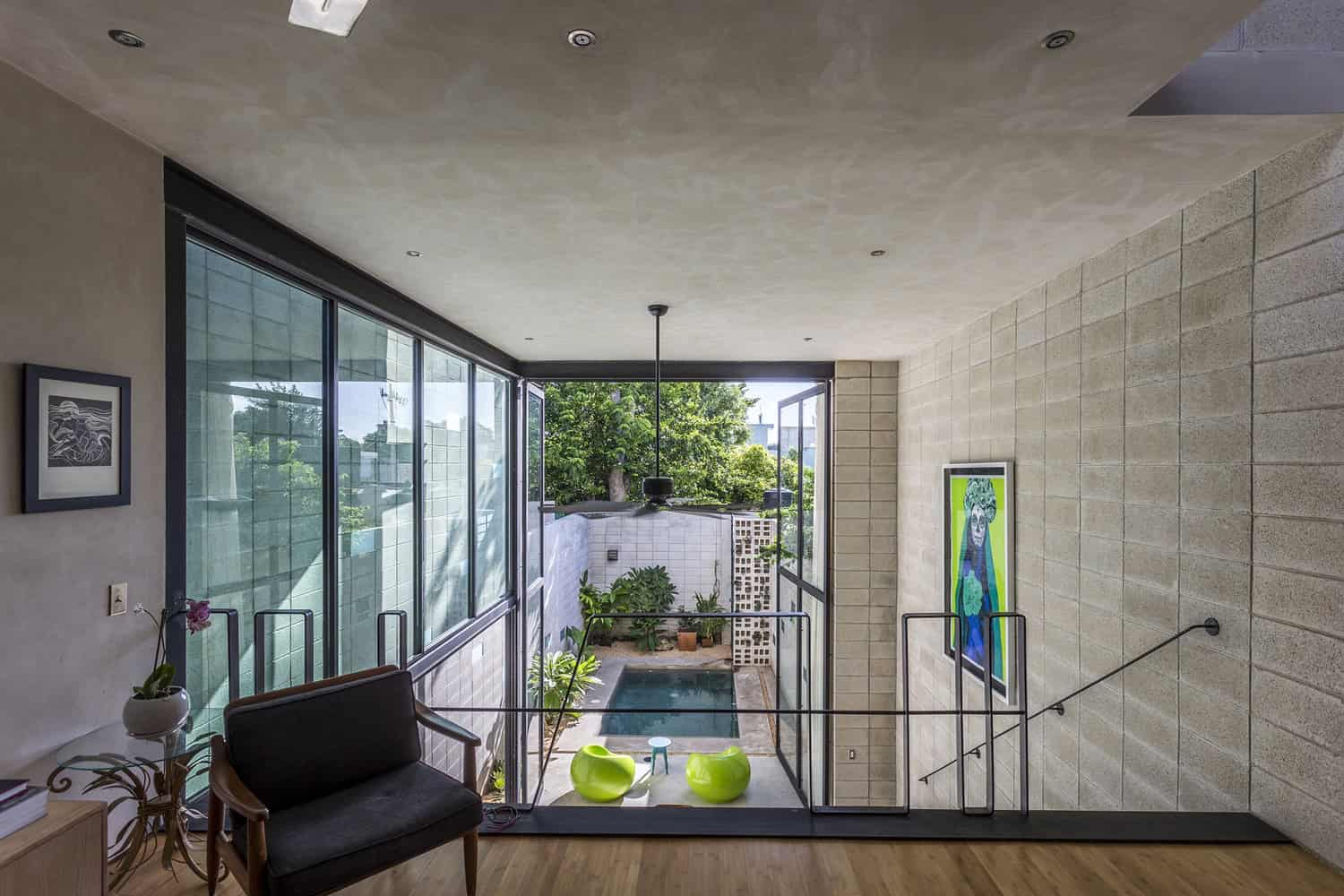

It was developed to ensure comfortable living for its residents, while also removing the feeling of living in a crowded area. The way this was achieved was true deviating from using synthetic and fabricated materials. Instead, the architects have displayed the use of readily available materials sourced from local firms. But what really “expands” the interior is a set of double-height glass doors that open completely towards the rear courtyard and swimming pool. Take a look!
If we talk about architecture, in recent years it seems that the trend is to use synthetic and innovative materials, which are at the same time more expensive.
Our concern for the “Raw House” project was exactly the opposite; the use natural, common and readily available materials in the city leaving them naked and exposed to appreciate their intrinsic beauty.
The first challenge came with the dimensions of plot, an urban waste resulting from a subdivided family home; the area of 6.5 x 27.5 with a west facade was not the most encouraging for housing needs.
The solution to the project, also solved the problems of sunlight on the west and the difficulty of cross ventilation in all spaces, creating a barrier with the services to the west and separating the northern limit of the house, leaving only 80cm that enable the creation of an “air chimney” which works successfully.

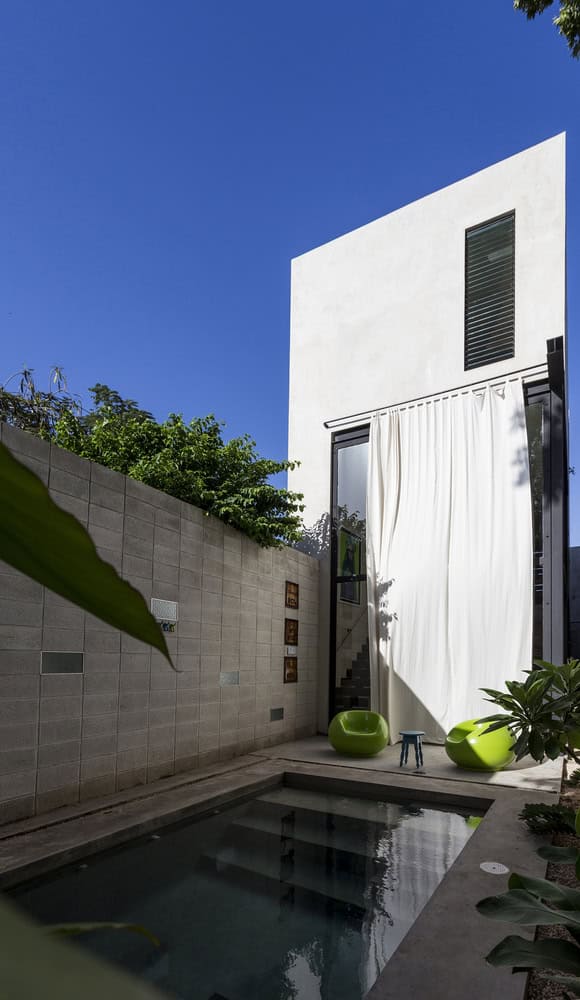

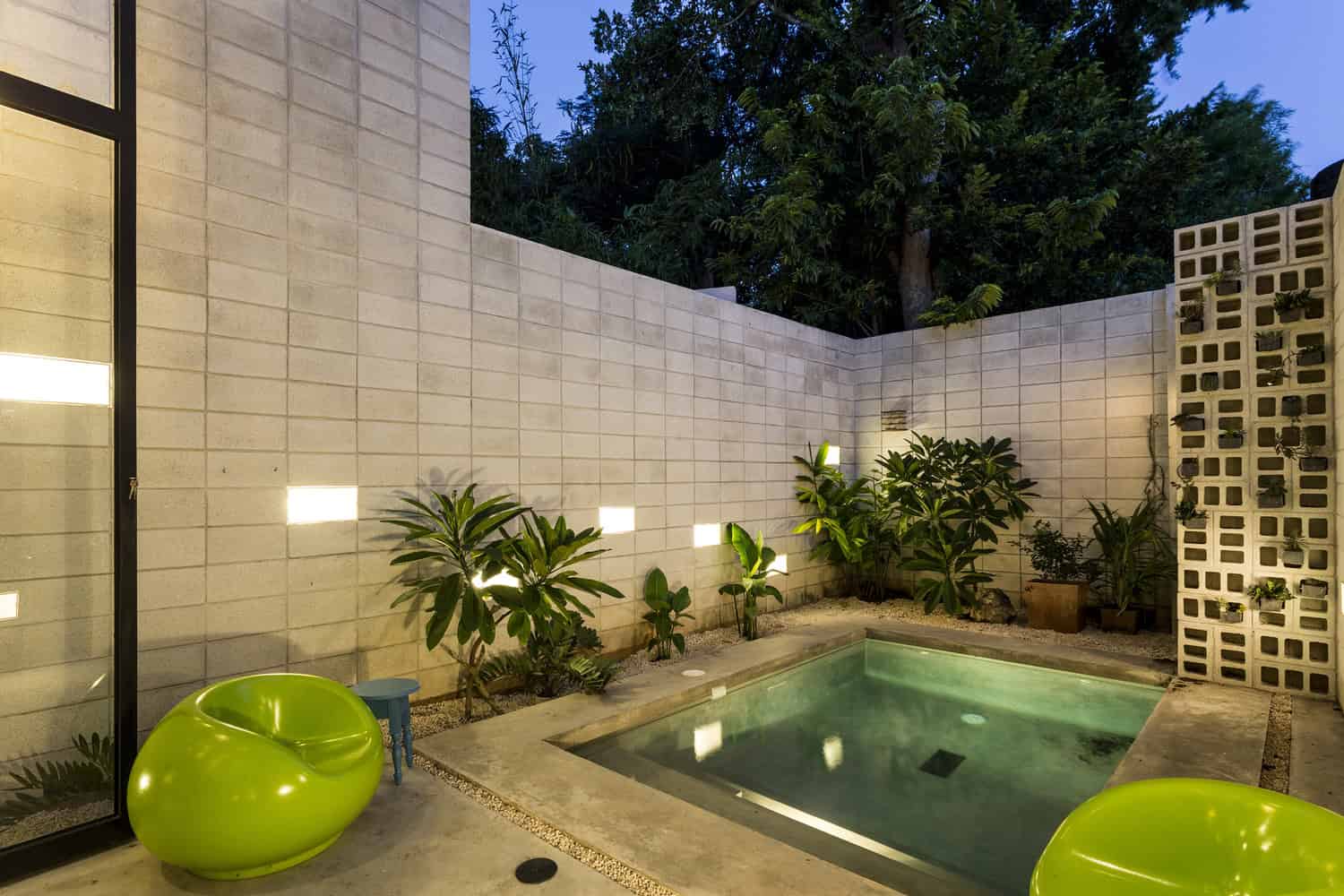

Passive conditioning elements become an integral part of the design, the pool that cools the air before entering the house, the glass wall to the east that opens or closes the space and controls the flow and the volume of air, sliding glass doors into the “air chimney” that create an entrance for the natural light in the north and a plant wall to the west to increase the thermal barrier.
Permaculture pots which always have water avoid overheating of the access area. Intermediate gardens work as a transition between the access to the living area and the interior garden.

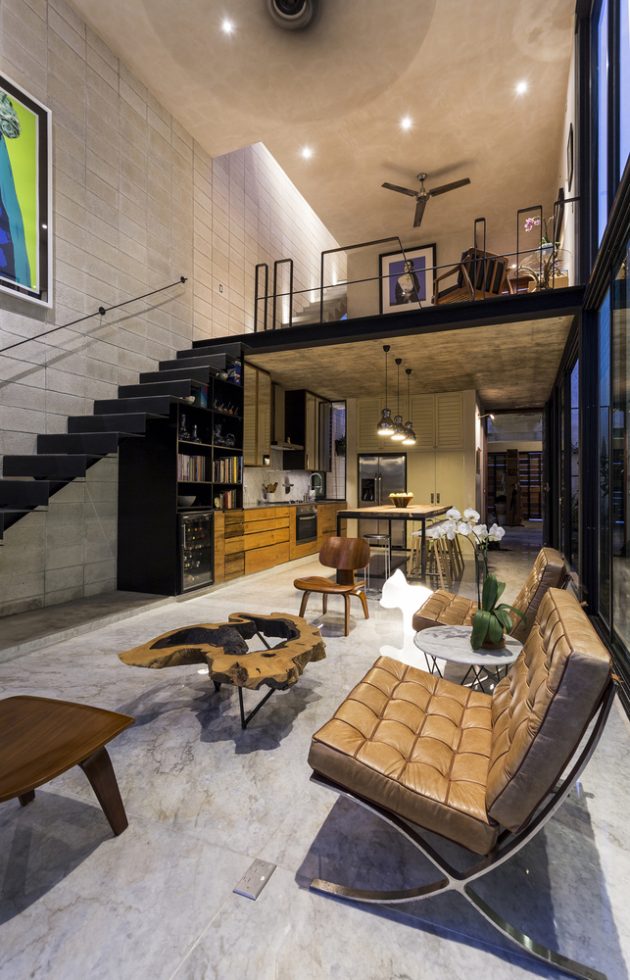

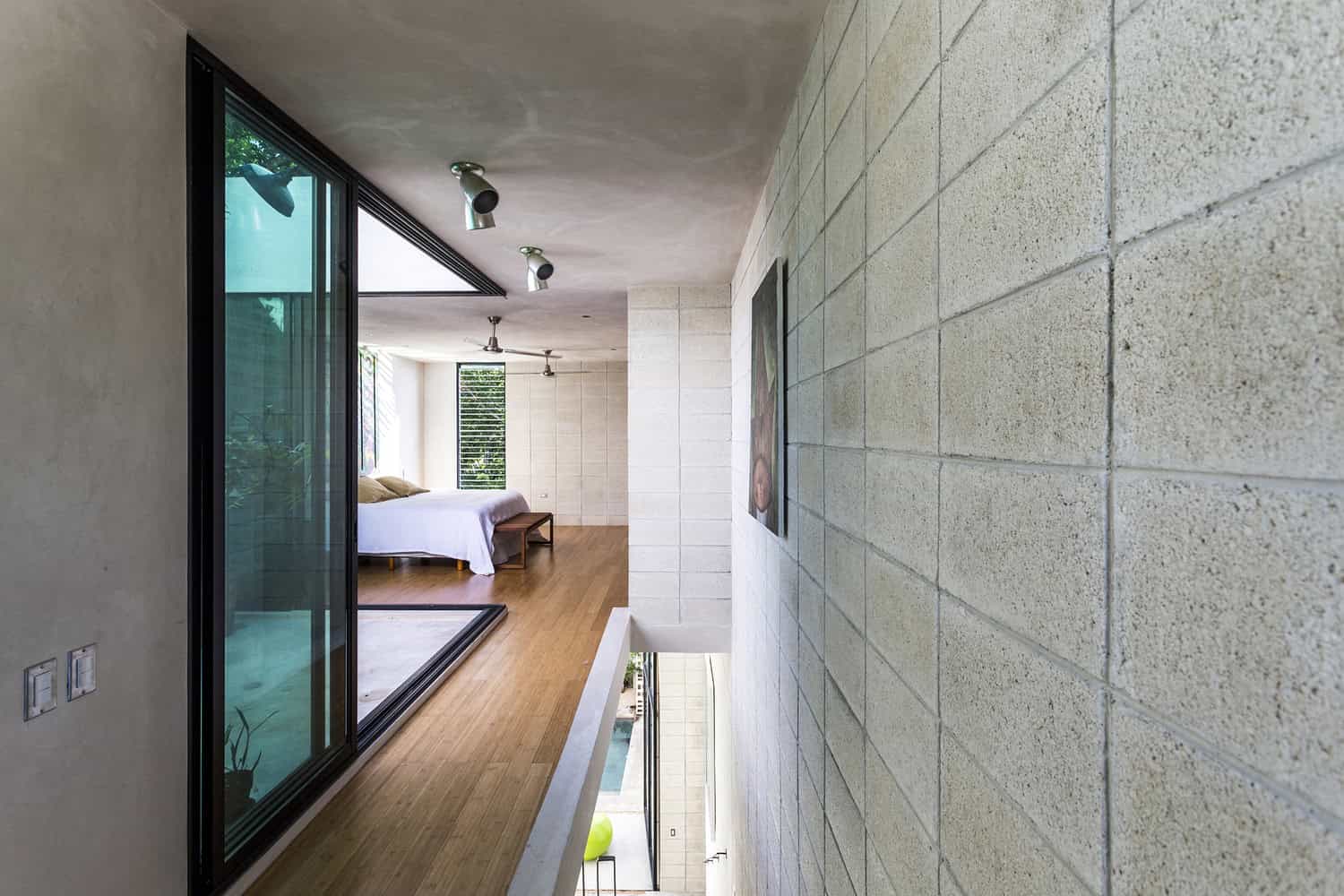

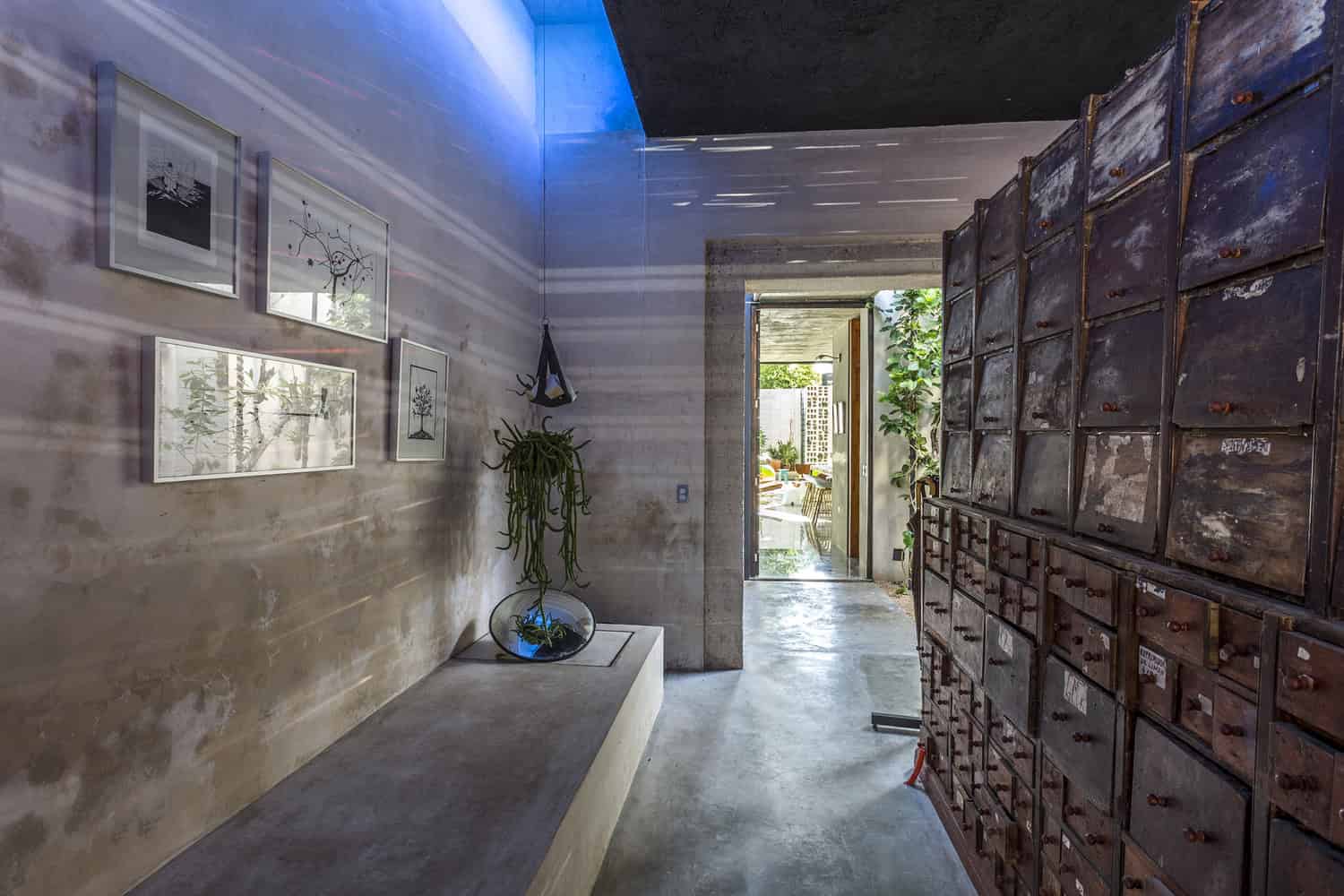

The material palette is largely determined by the construction and structural elements exposing them for the most part. The ordinary block wall, so common in the area transforms itself by avoiding the overlapping and being apparent becoming the “module” of whole design.

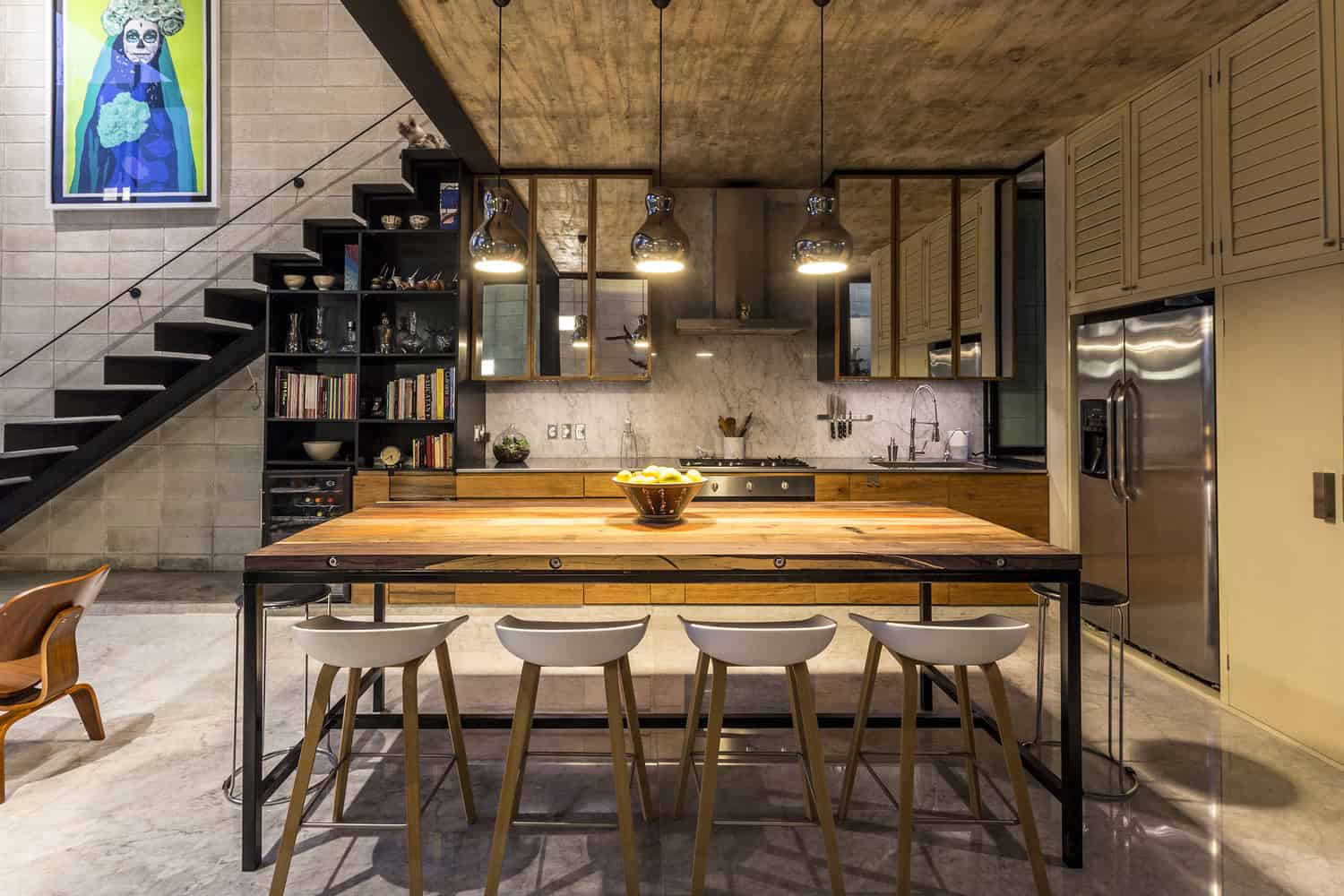

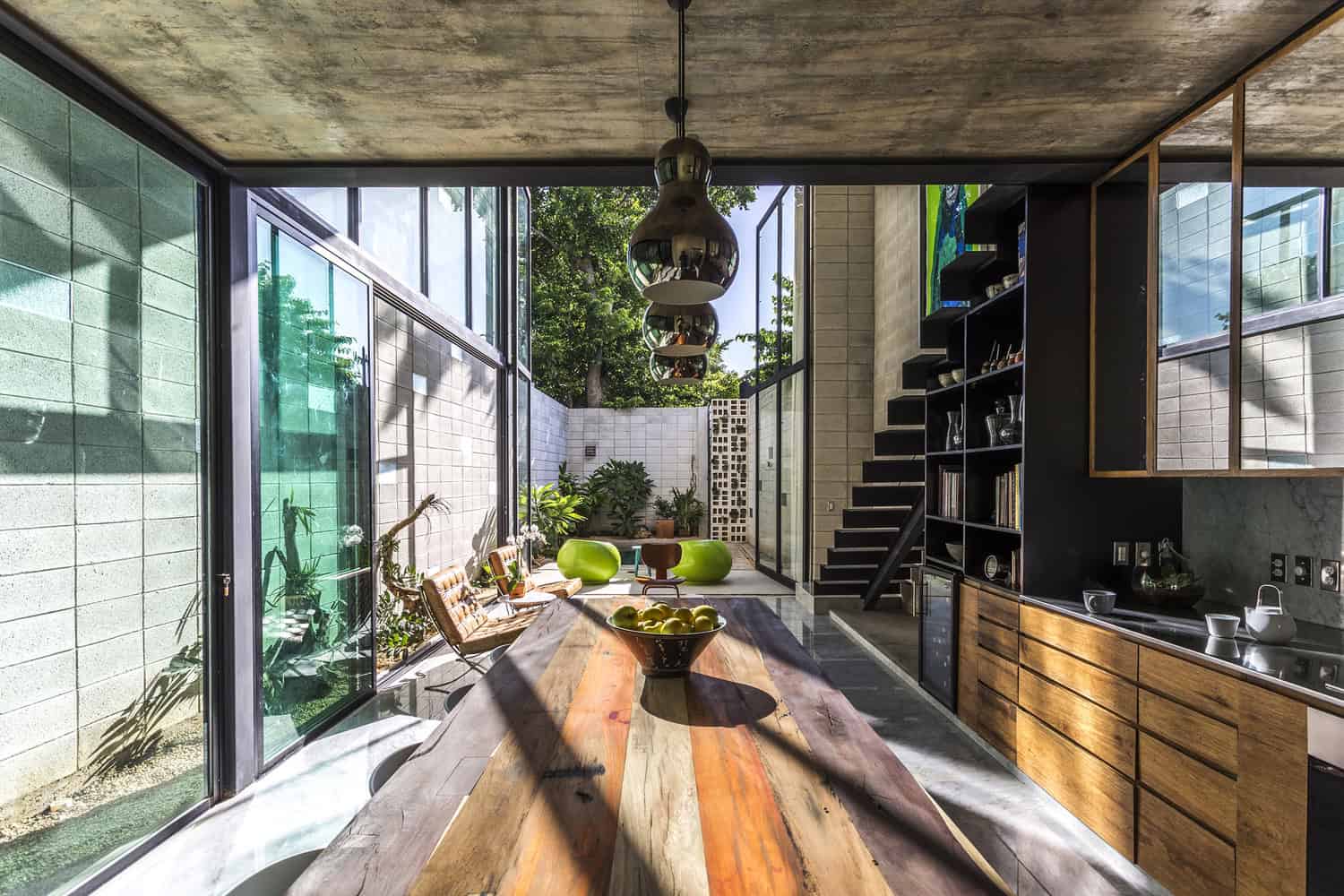

Finally floors and woodwork elements (mostly recycled from old doors) add a warm character to the overall atmosphere.
