Project: Puebla House
Architects: RDLP Architects
Location: Puebla de Zaragoza, Mexico
Area: 5,688 sf
Photographs by: Jorge Taboada
Puebla House by RDLP Architects
Designed by RDLP Architects, the Puebla House is located in the Puebla de Zaragoza municipality of Mexico. It is placed among a scenic rocky area so naturally, its design was heavily influenced by its surroundings. This home features an exposed concrete construction mixed up with plenty of glazed surfaces that bring natural light to almost all of its 5,688 square feet of living spaces.
Casa Puebla displays a concept towards inside life where the visual motif is the Popocatépetl volcano, one of the most important natural icons in central Mexico.
The residence was conceived through inspiration regarding the aesthetic values of Mexican culture translating them into an avant-garde concept, in a fresh, contemporary and warm way, carefully selecting materials, as well as encouraging its residents to live both on the inside and to the outside through the openings towards the garden. Color and material palette seeks to blend architecture with its context, being an implicit tribute to the volcano.

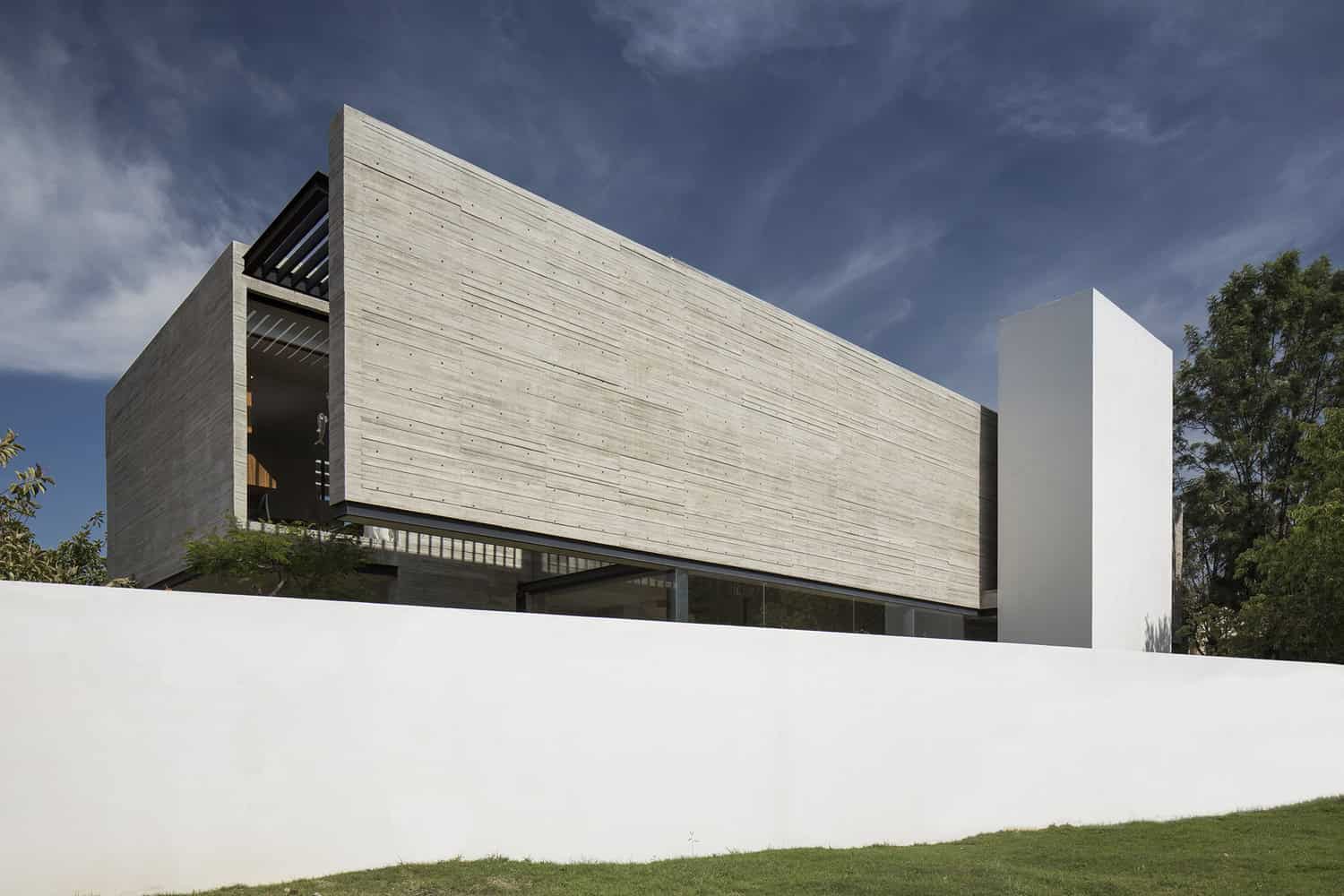

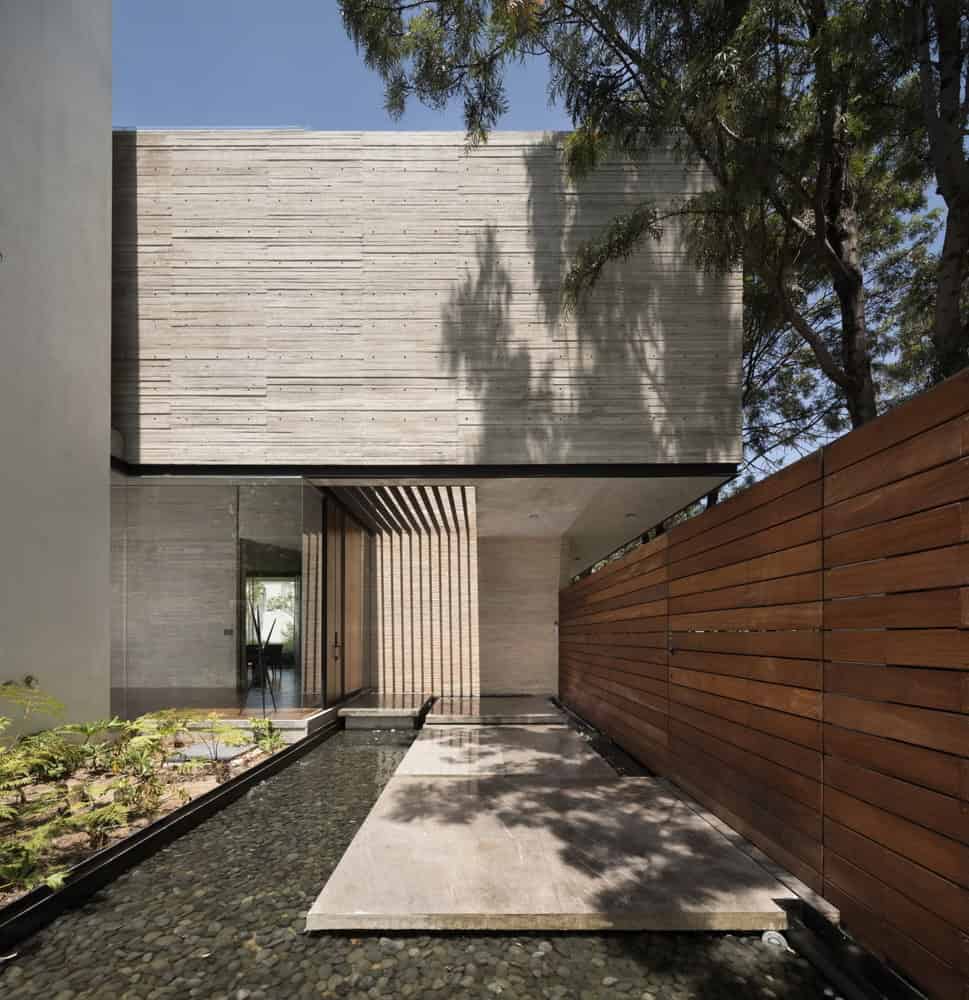

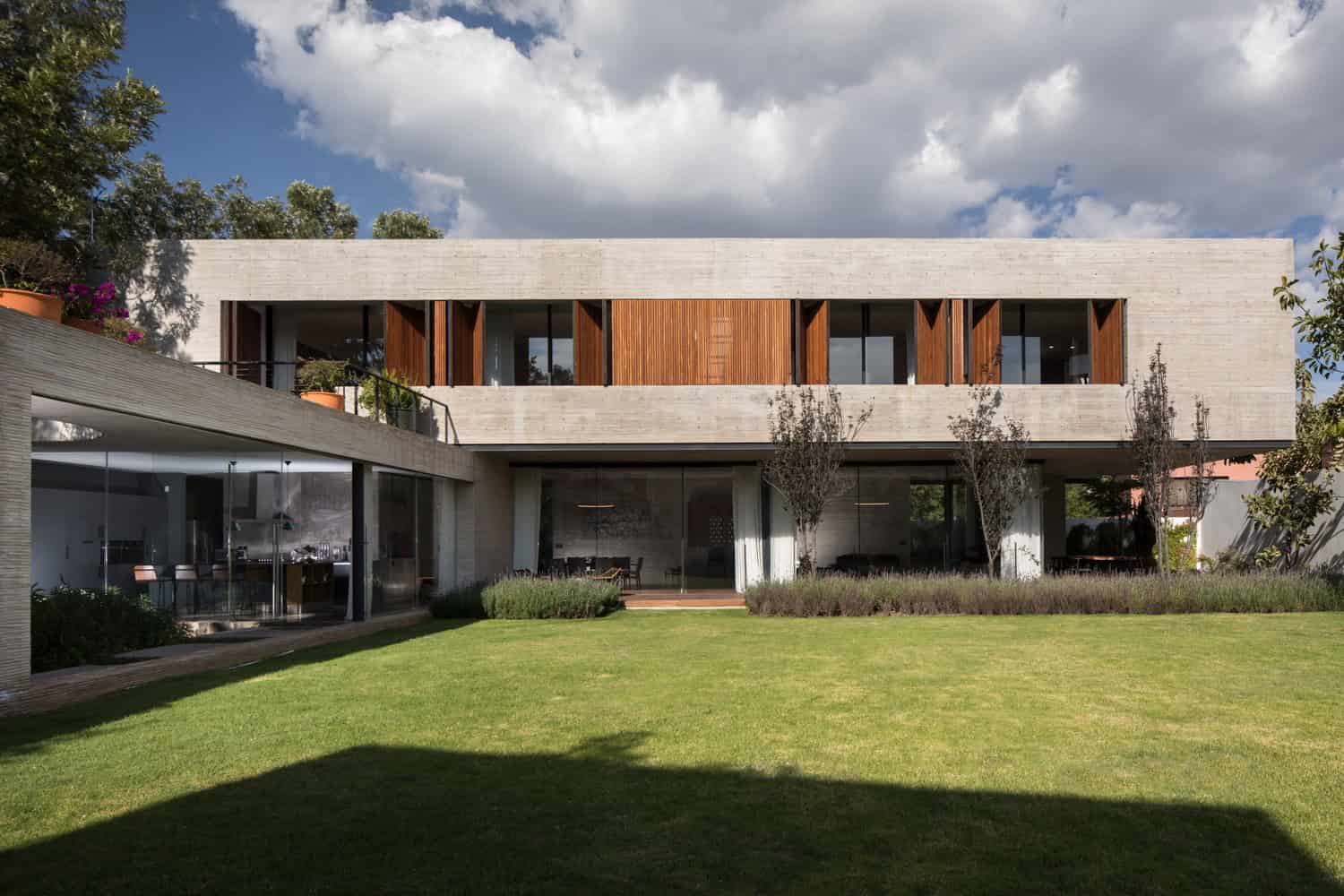

Volumetric design is defined according to the intersection of two rectangular volumes, creating an L-shape structure. The volume scheme is perceived as a visual contradiction, where the heavier looking block was intentionally set on the lighter looking one, placing a closed concrete volume on top of one made of glass, generating a contrasting visual dynamic.

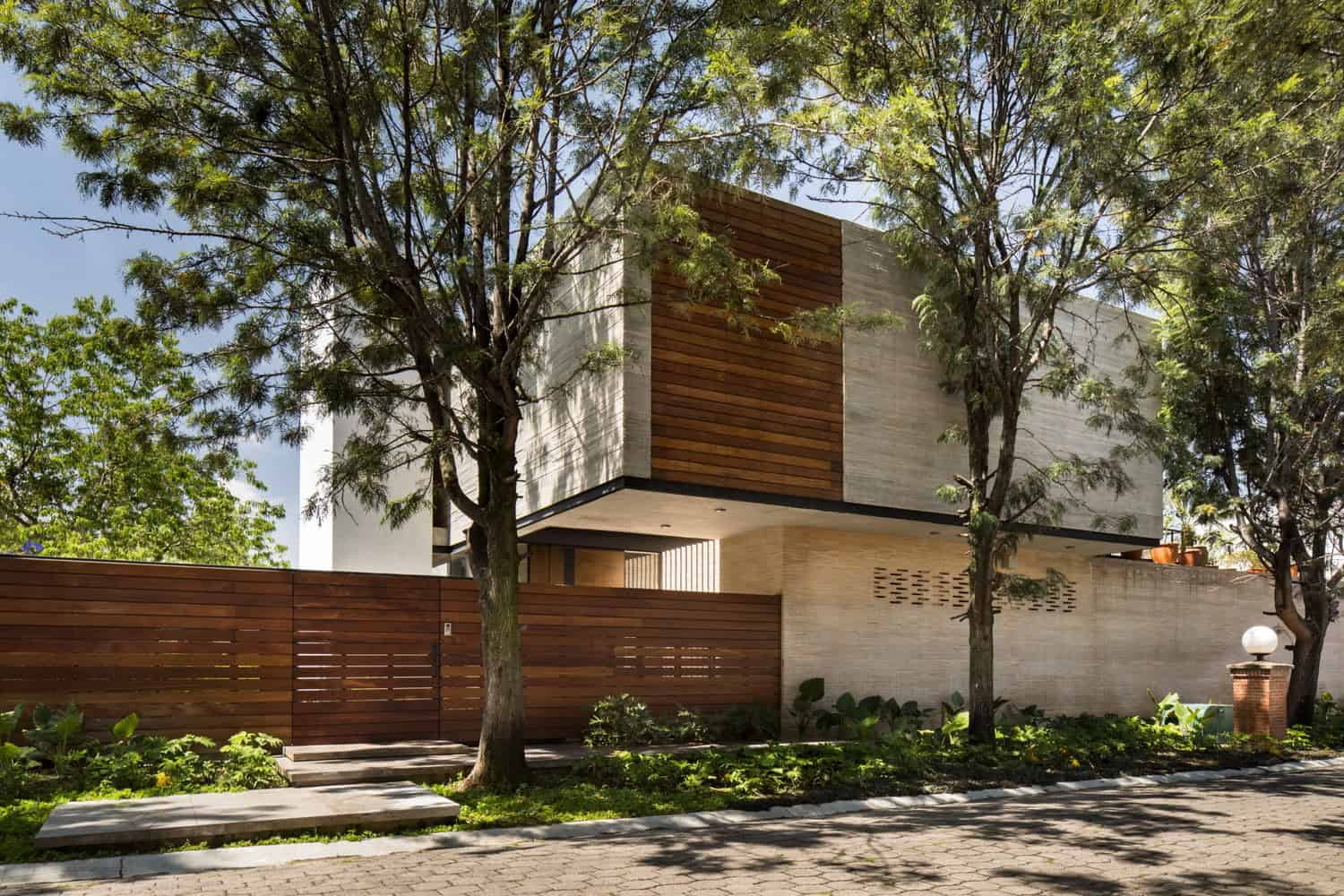

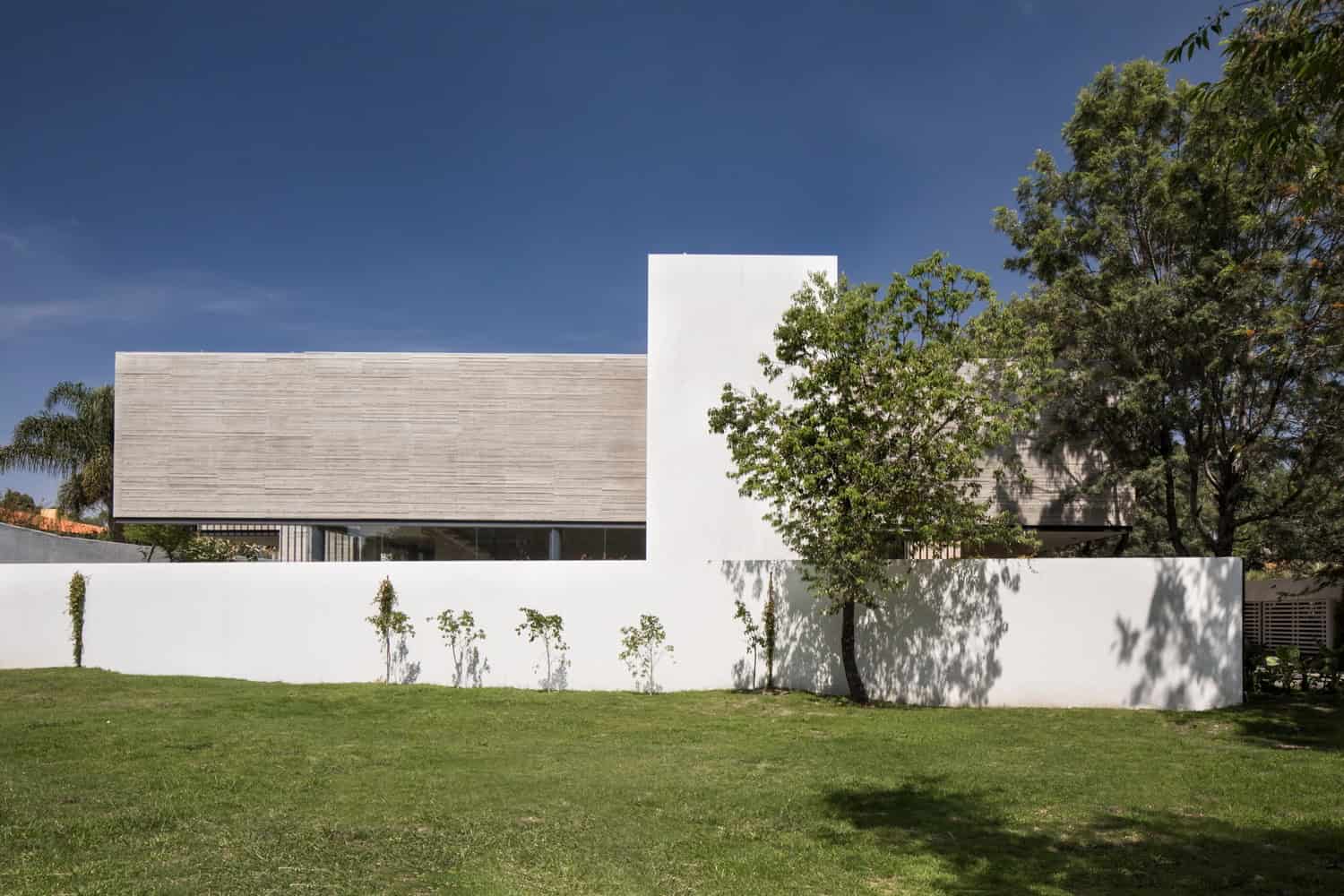

When approaching the house, the exterior can be perceived as blind and private, with a solid character that does not allow to see inside, however, upon entering the residence, a fluid and continuous space can be experienced, which opens to the exterior grounds and landscape, dissolving the boundaries between outside and inside.
One of the starting facts was that the location of the lot was compromised towards east and west, so on the upper floor the roof overhangs 5 to 6 meters as a shading strategy, specifically with the intention to safeguard social areas.

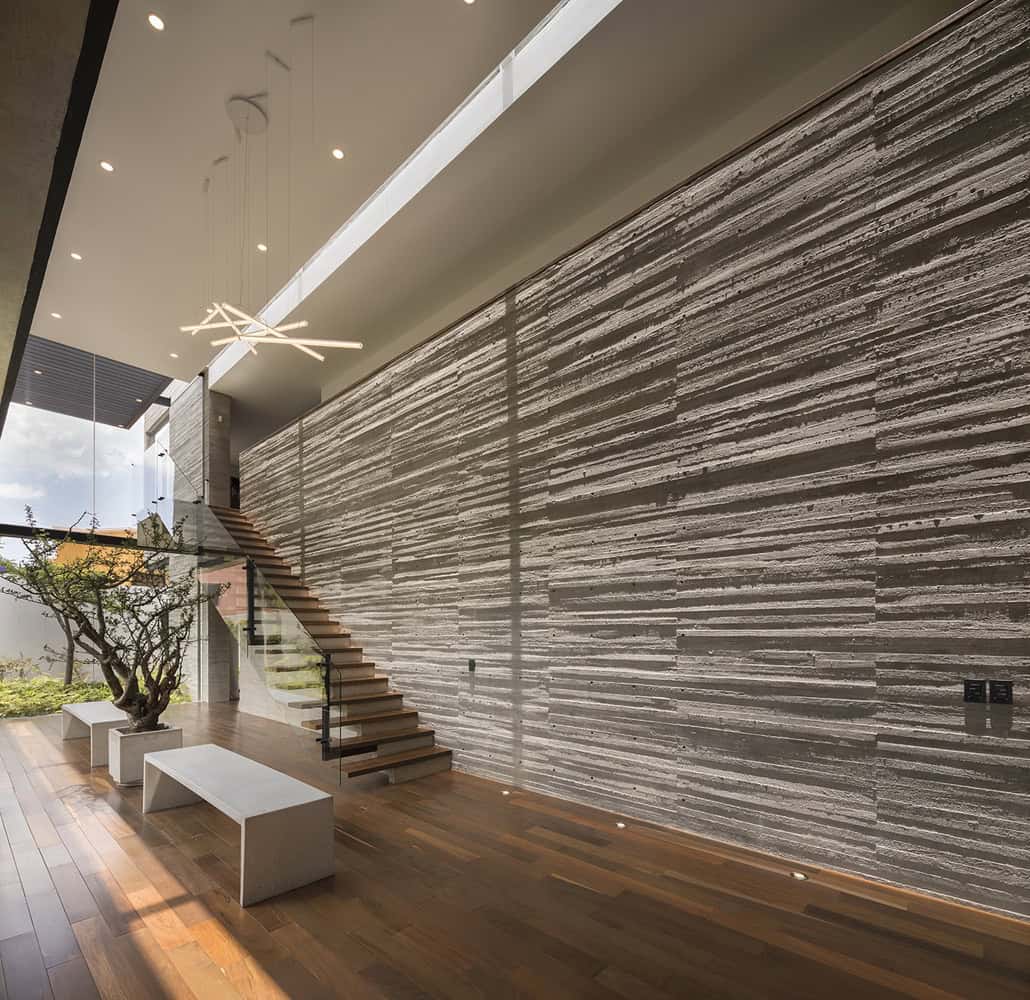

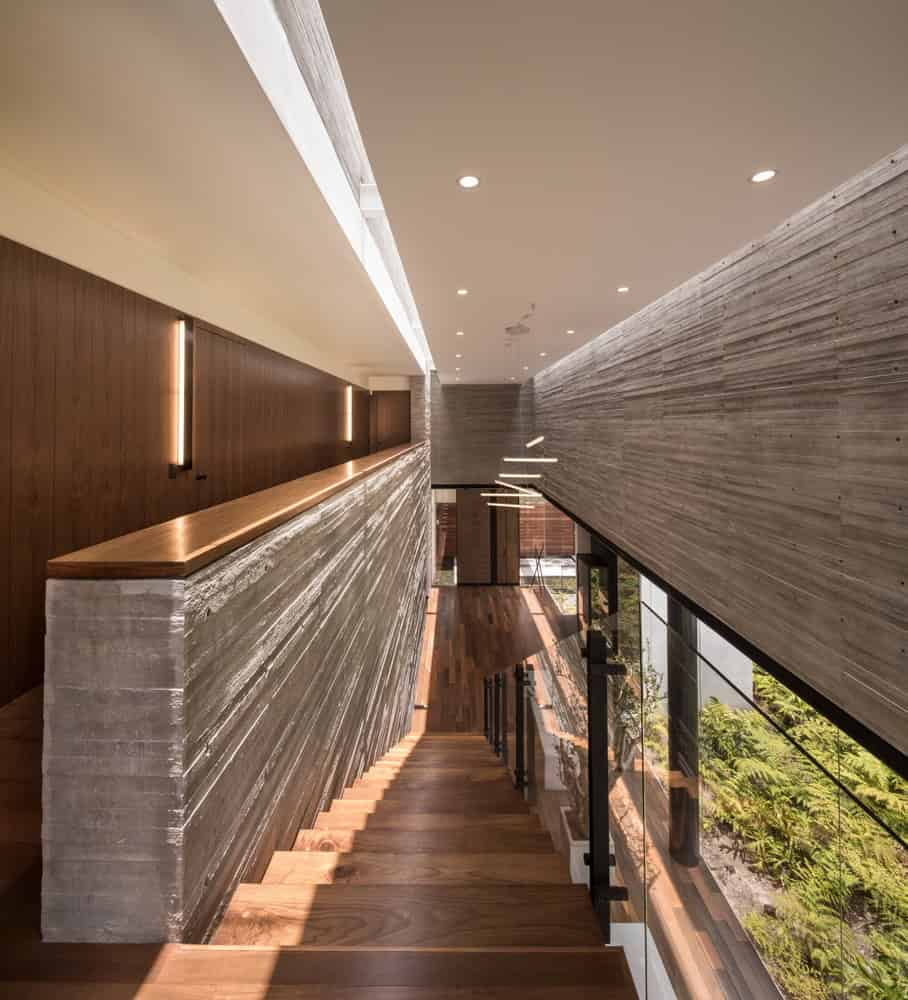

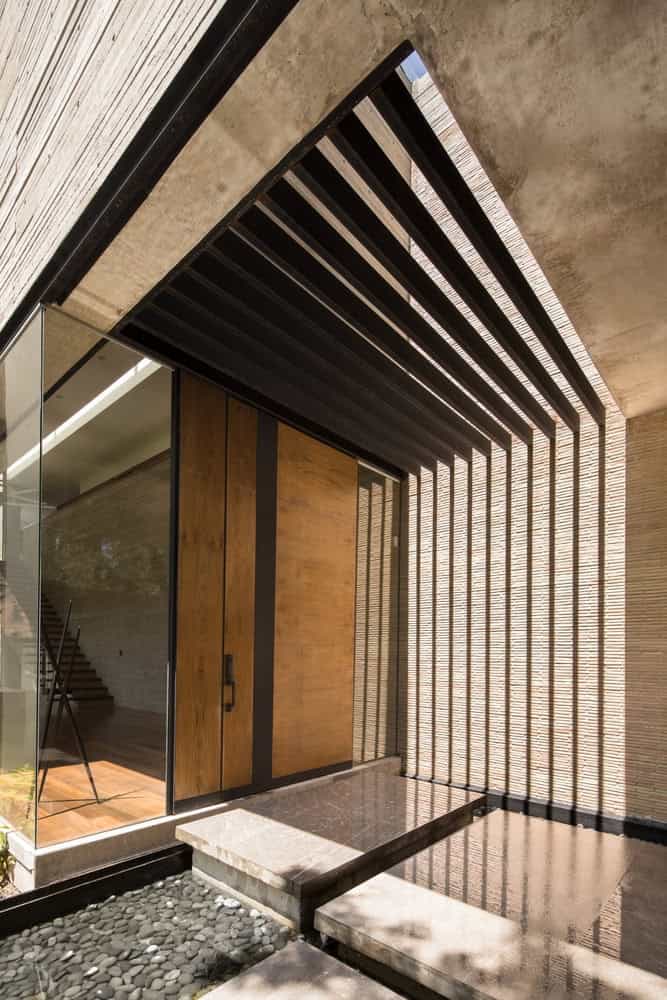

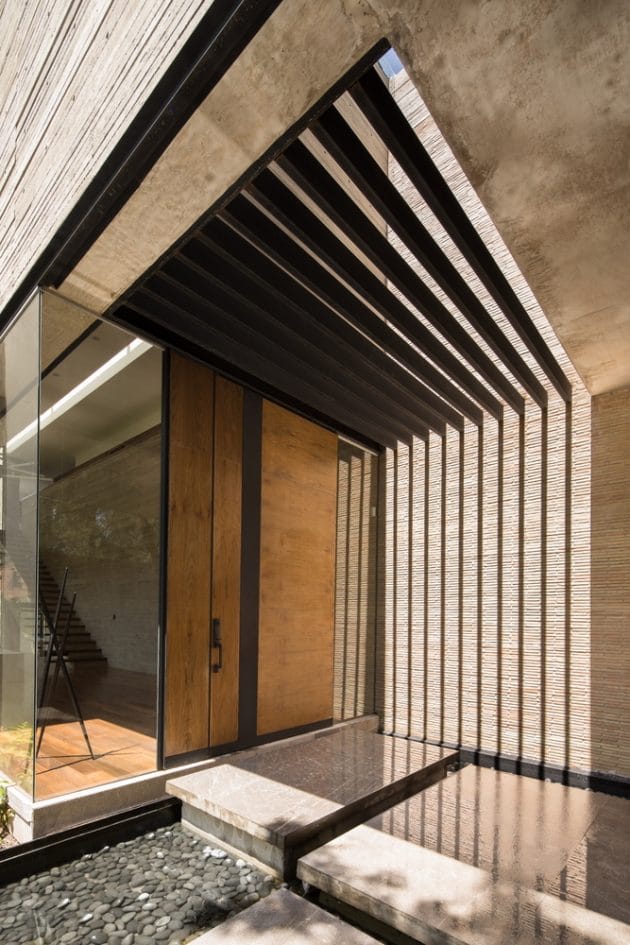

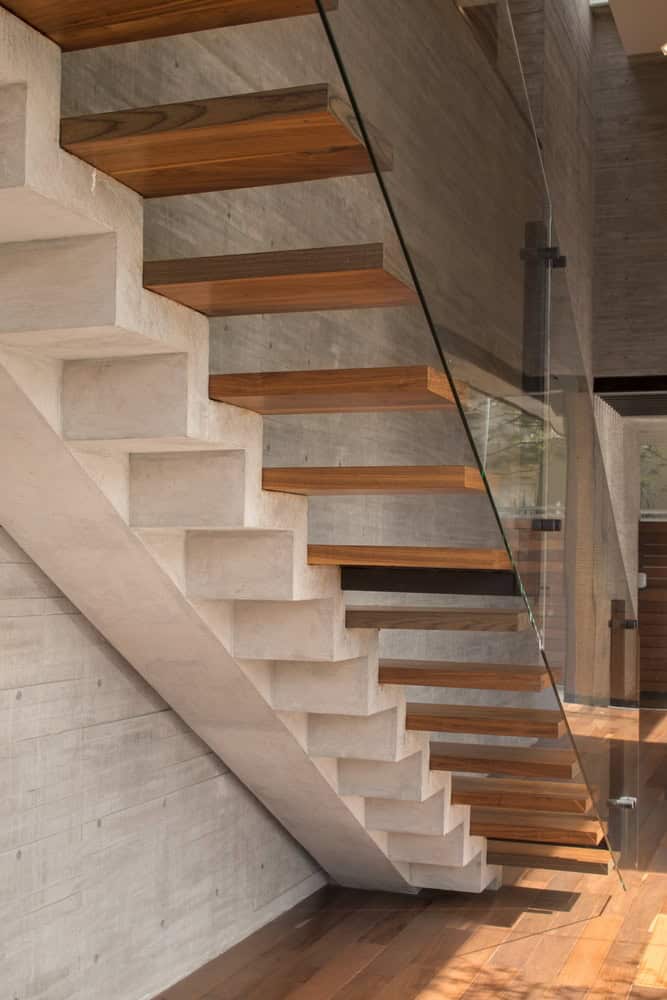

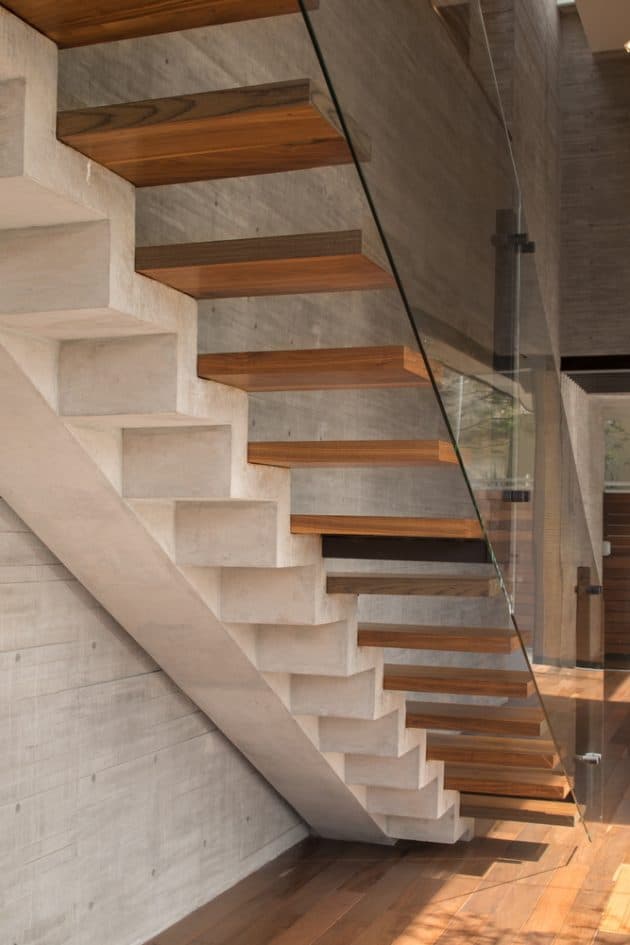

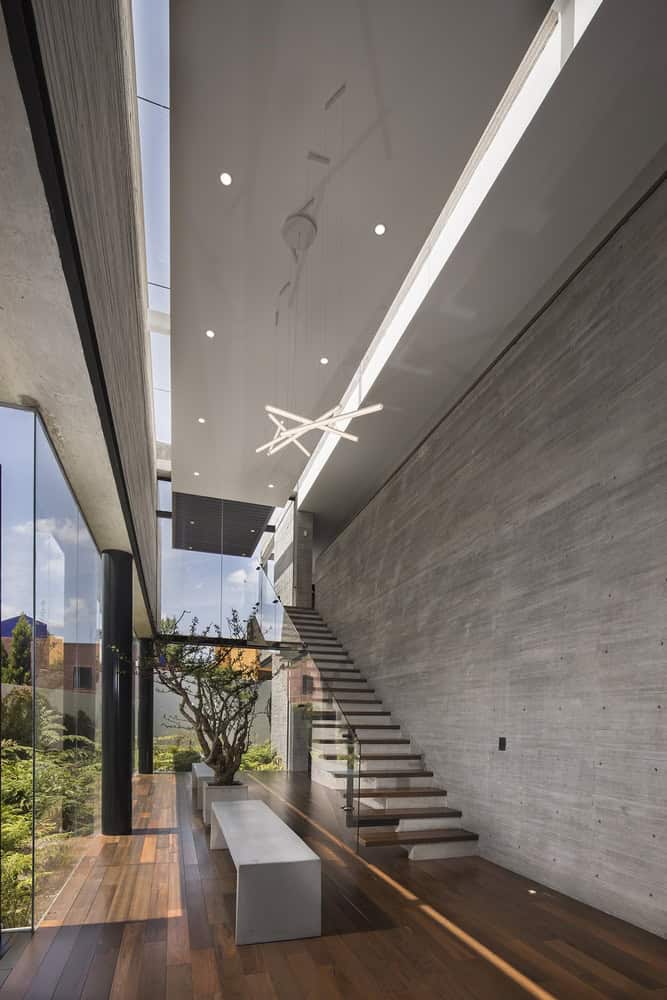

At the entrance, a volume was defined as a double height space that becomes the distributor of the project, both horizontally and vertically. In this area, the staircase becomes one of the main design details, thanks to its concrete structure and floating wooden footprints.

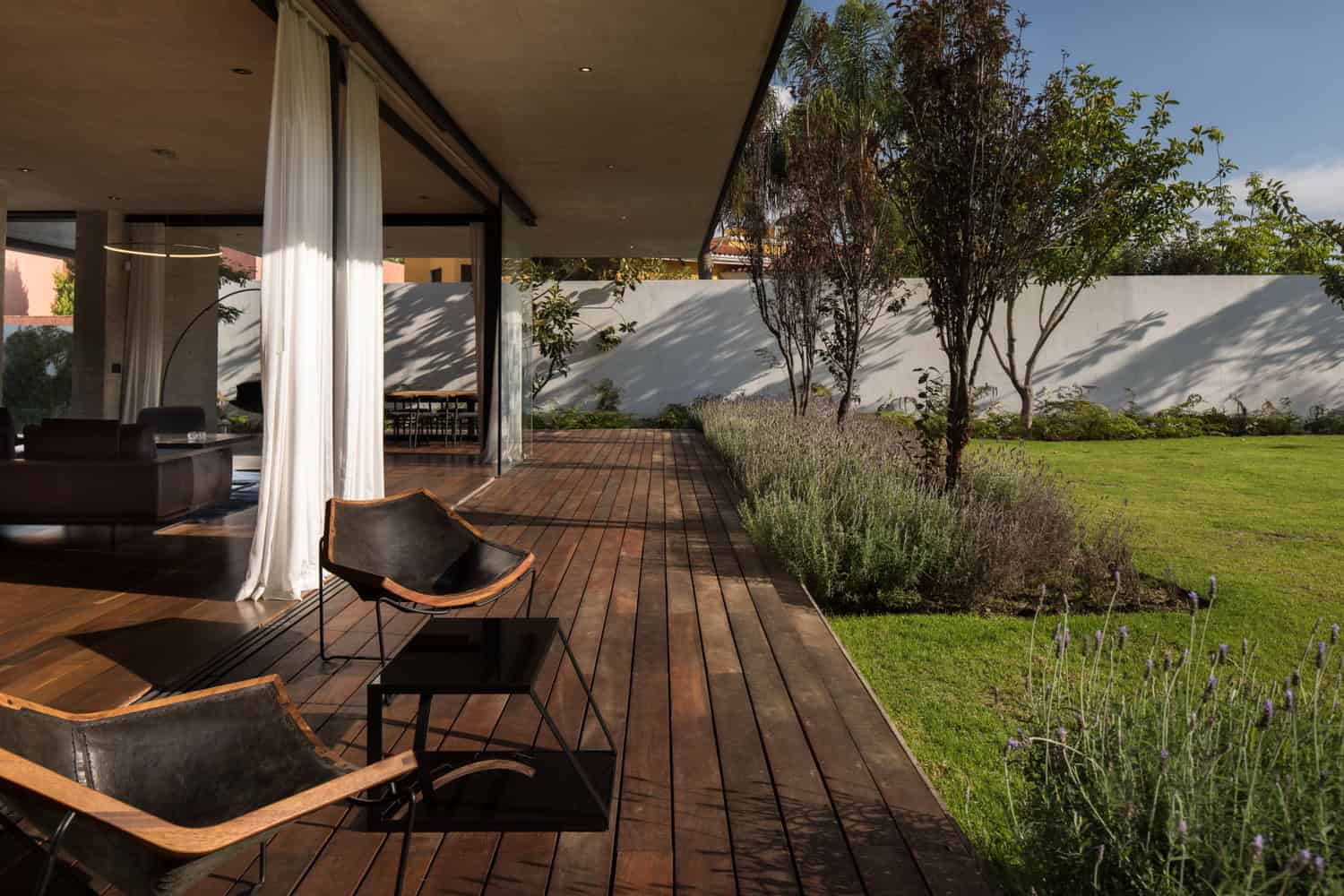

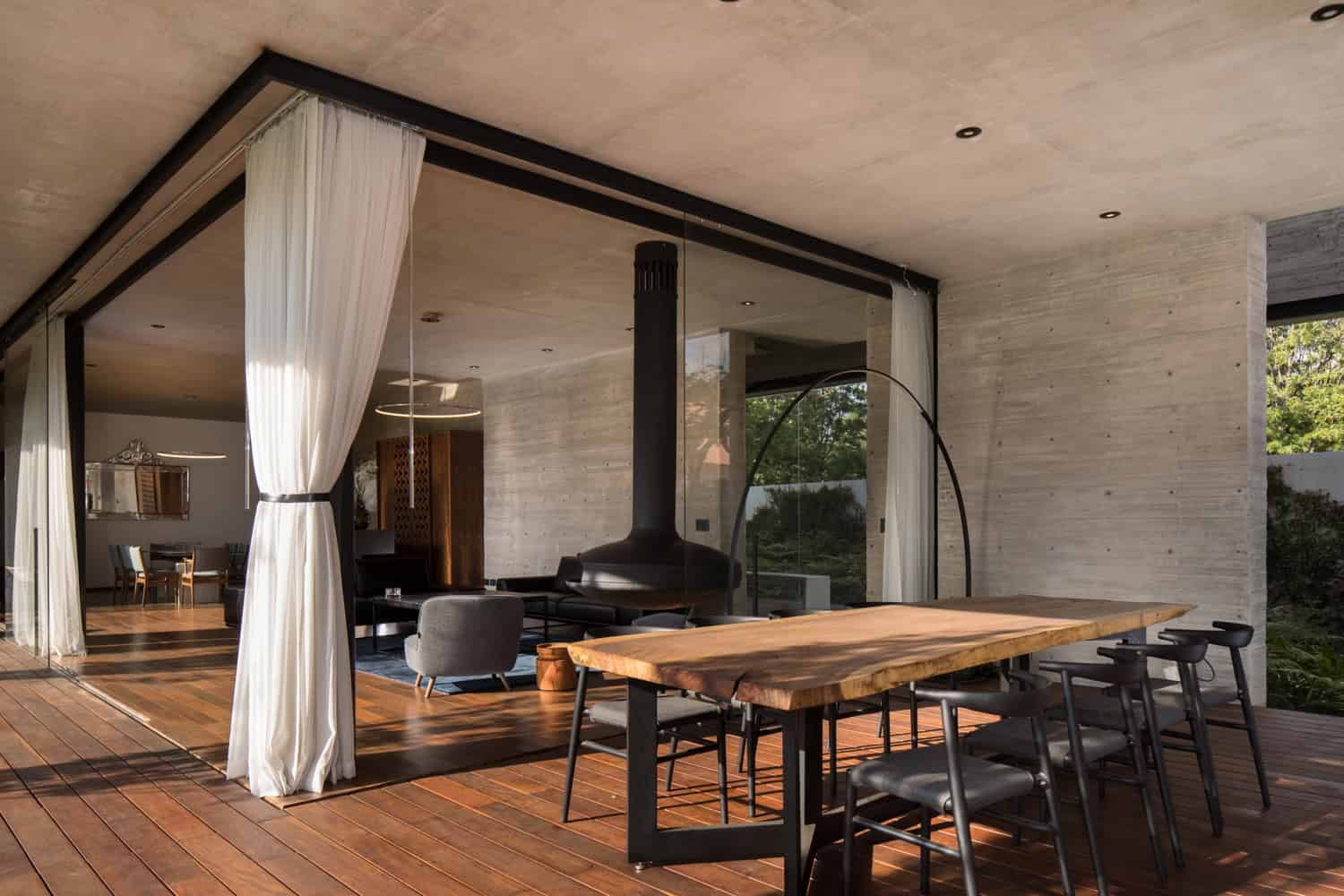

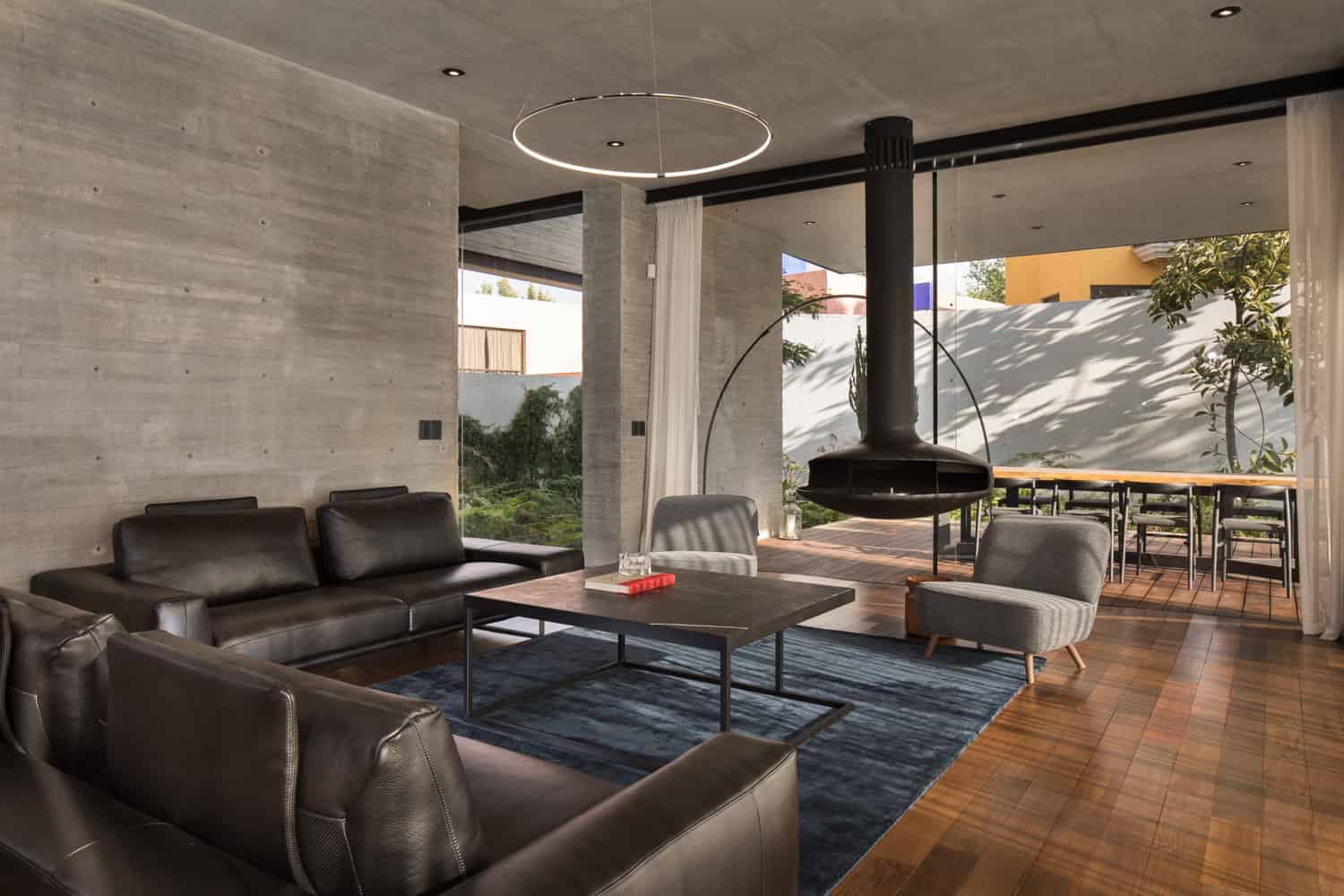

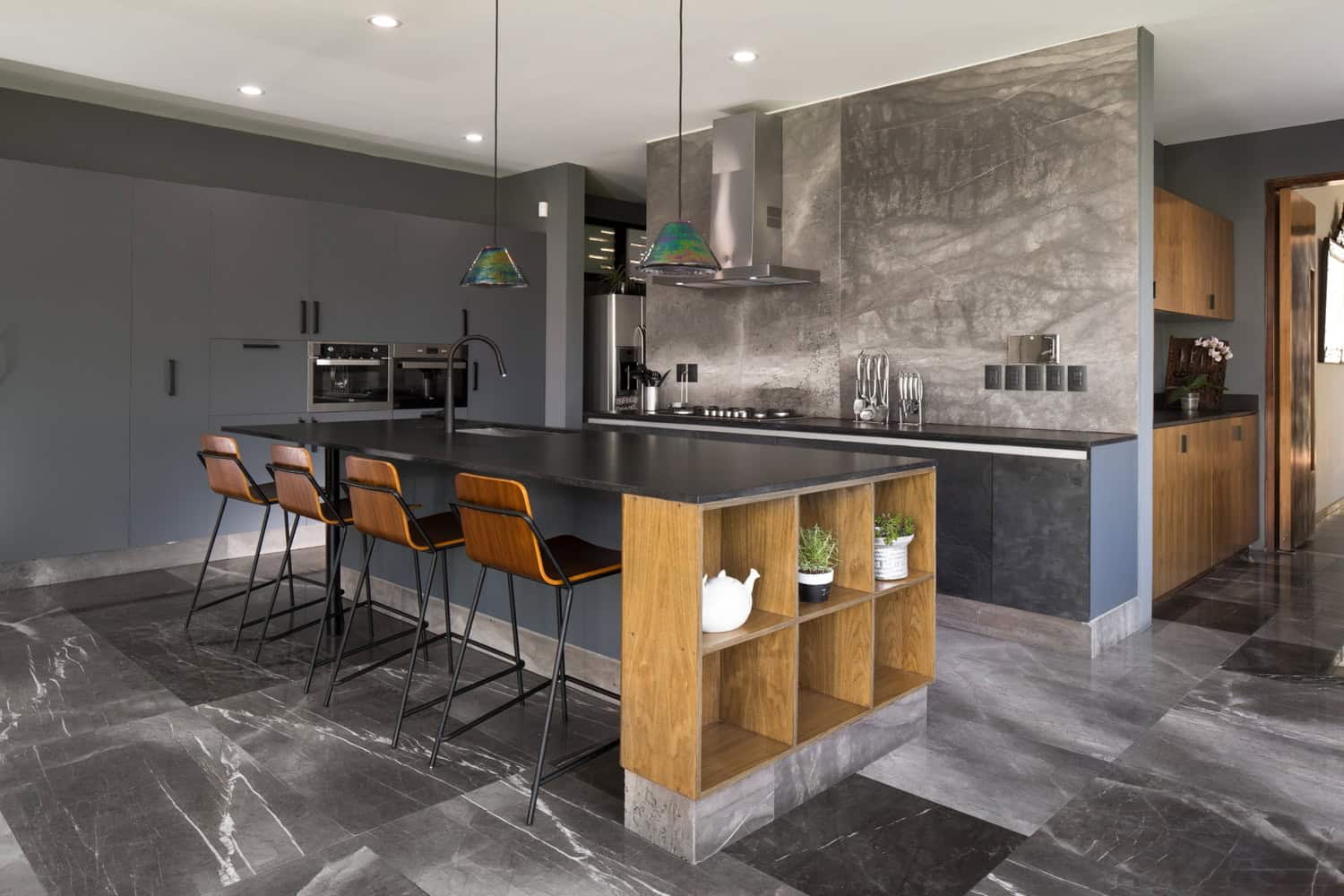

On the ground floor, the social and service areas were defined, where the distribution unifies the living and the dining rooms, being in direct communication with the kitchen, and offering an integral and transparent living experience. At the social area, large sliding glass doors were designed to join interior and exterior spaces, increasing space considerably according to specific needs or requirements, which encourages family interaction and is ideal for social gatherings.

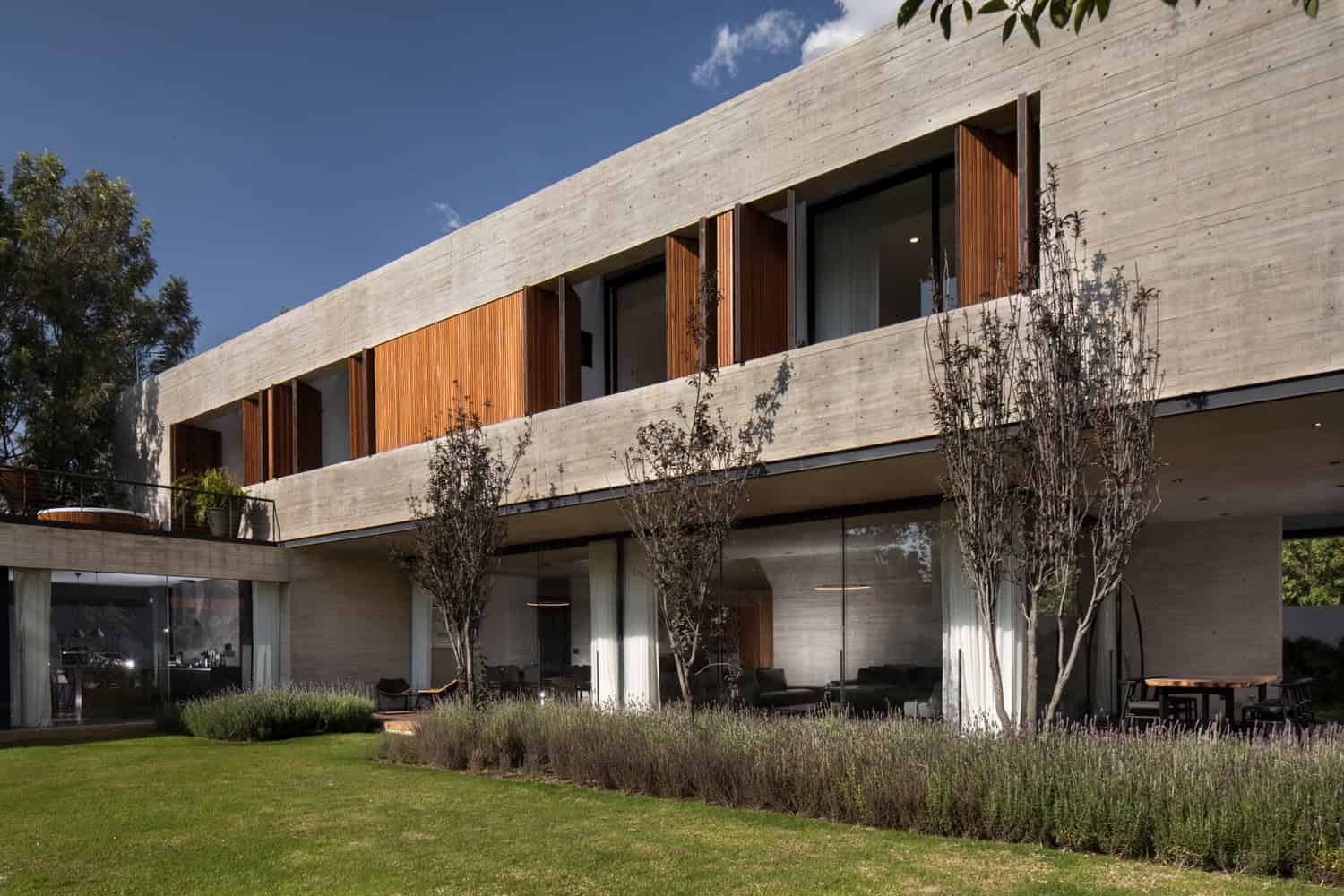

On the upper floor, the private areas are located, including the family room and bedrooms. On this level, wooden shutters were used as sun protection for the rooms.
The material selection was based on the use of exposed textured surfaces to follow in a subtle way the regional tradition of tiles with identifiable textures.

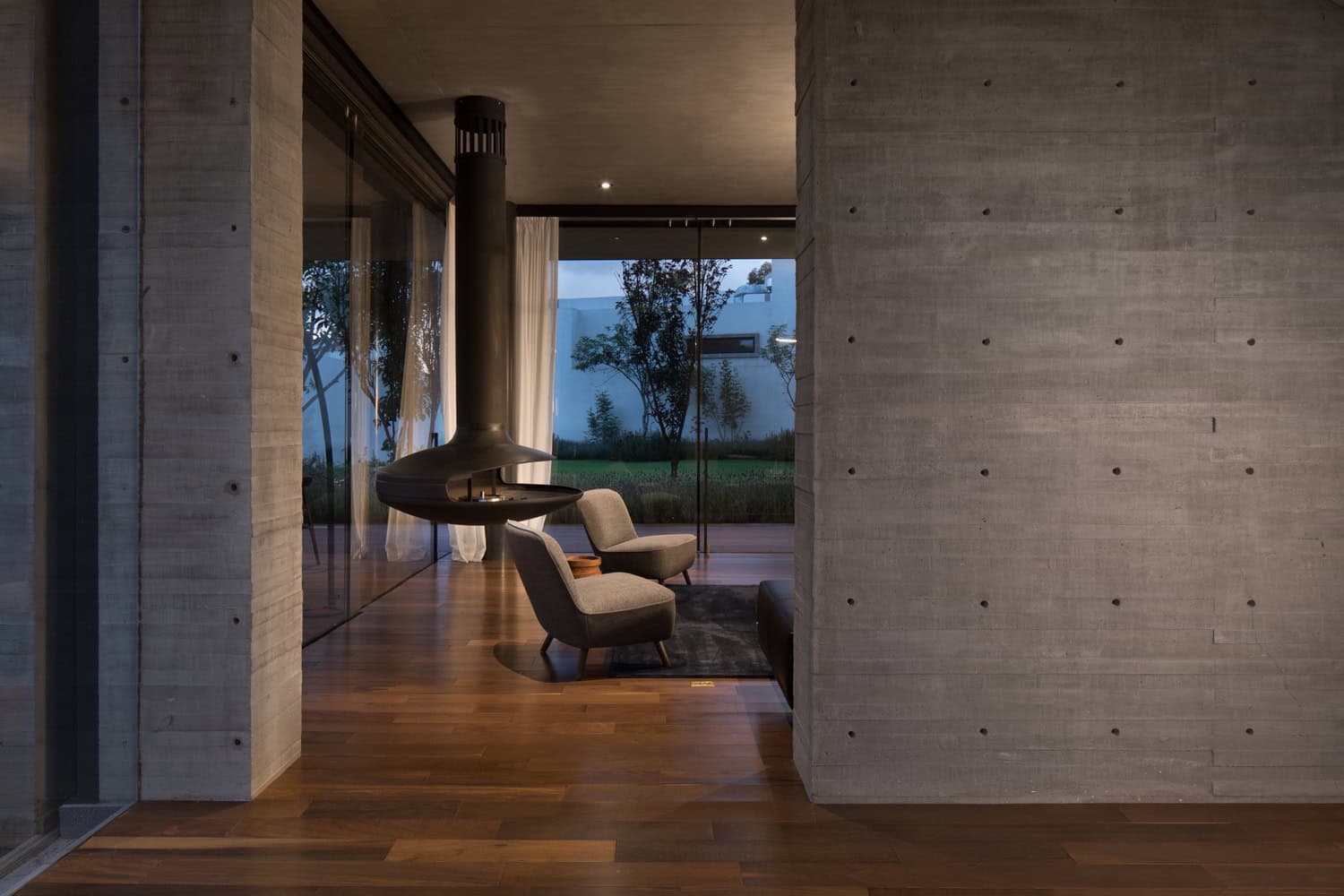

Clearly, the board form concrete texture walls define a solid architectural identity for the house. Also, concrete joins wood on floor and wall applications, creating a contrast effect between both materials. It is worth noting that the light and shadow effect achieved on concrete walls due to natural lighting is one of the main design intentions, creating harmonious environments with great visual impact.
To promote interior space continuity and flexibility, a creative structural solution was proposed to reach an 8- meter span without having to use a post-tensioned slab structure. Considering this matter, a 20-centimeter double slab with intermediate rebar structure elements with a 1.50-meter separation was designed and constructed, defining a slab height of 80 centimeters, which can be considered a concrete open slab system.

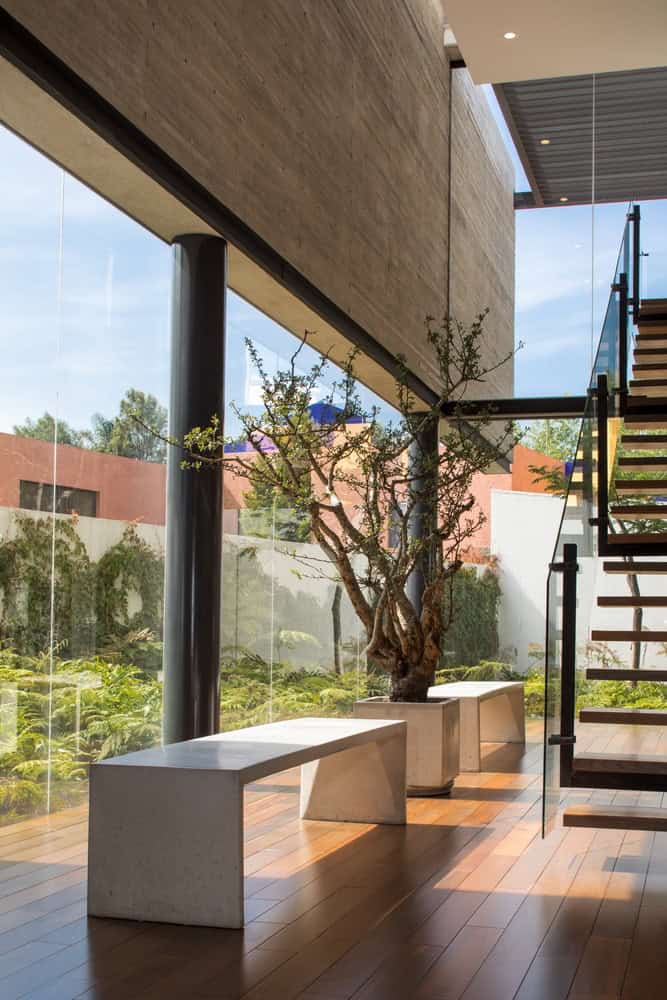

For the ground floor, the solution was to use a structural hybrid system of steel columns that includes a concrete core, which solves the open space and has a good performance in relation to seismic events, and at the same time providing the necessary support for the upper floor which has a greater structural load. Likewise, this column system allows having an open social area and greater privacy in the family area.
The construction process is traditional, and even artisanal, taking special care during the casting process and finishing of all concrete elements, due to its final finishing condition and being one of the main design materials for the project.
As part of a sustainability strategy, the double height access ensures a continuous interior vertical ventilation. Also, by using sliding doors to create an open atmosphere cross ventilation is guaranteed, which avoids air conditioning usage completely.
Natural light is essential inside this house defining interior environments naturally lit, minimizing artificial lighting which decreases interior space temperature and energy costs.

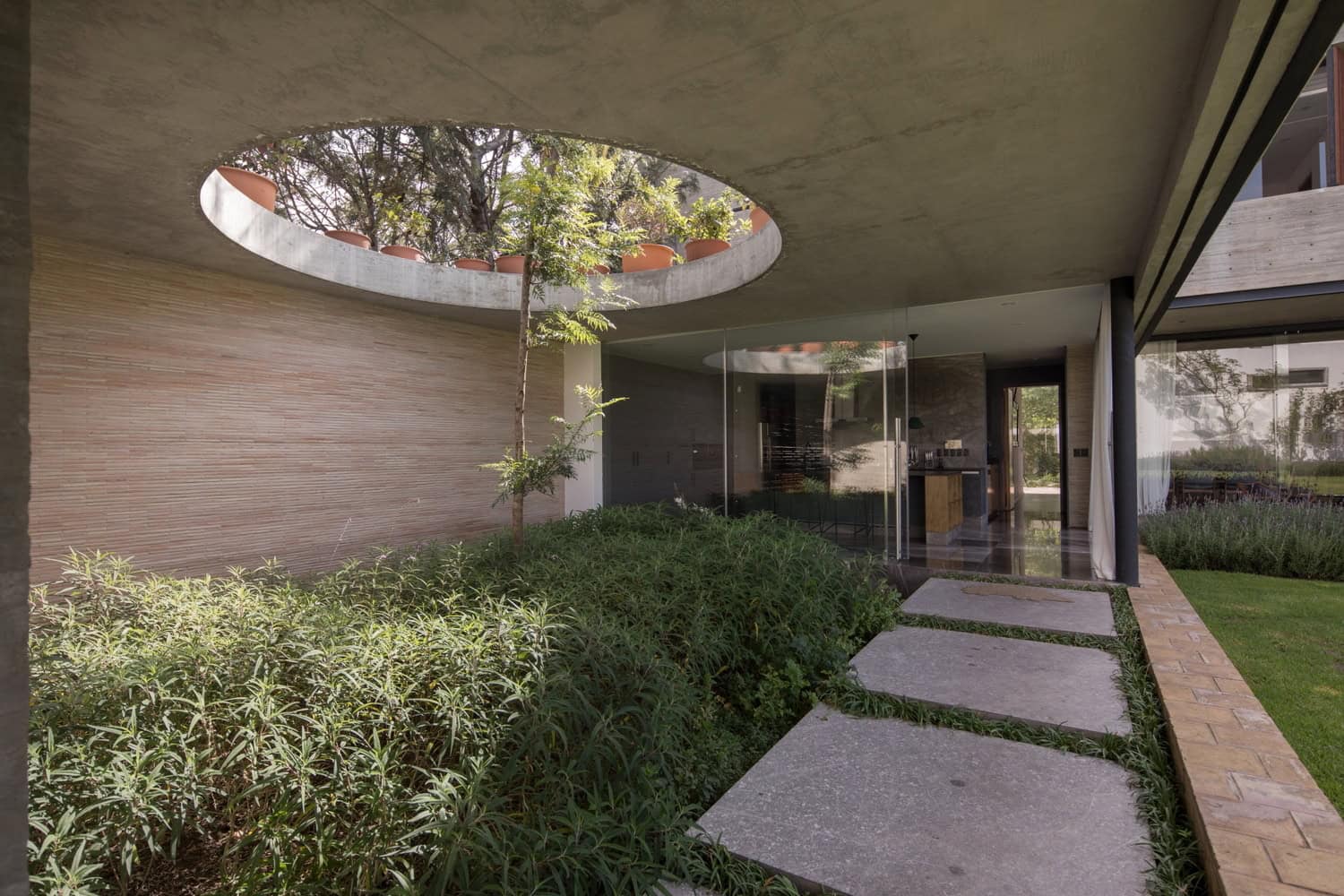

To promote cool and shaded spaces, several reflecting pools, water features and extensive vegetation were defined both for the garden and entrance, which contributes to thermal sensation improvement and encourages the use and appropriation of exterior spaces.

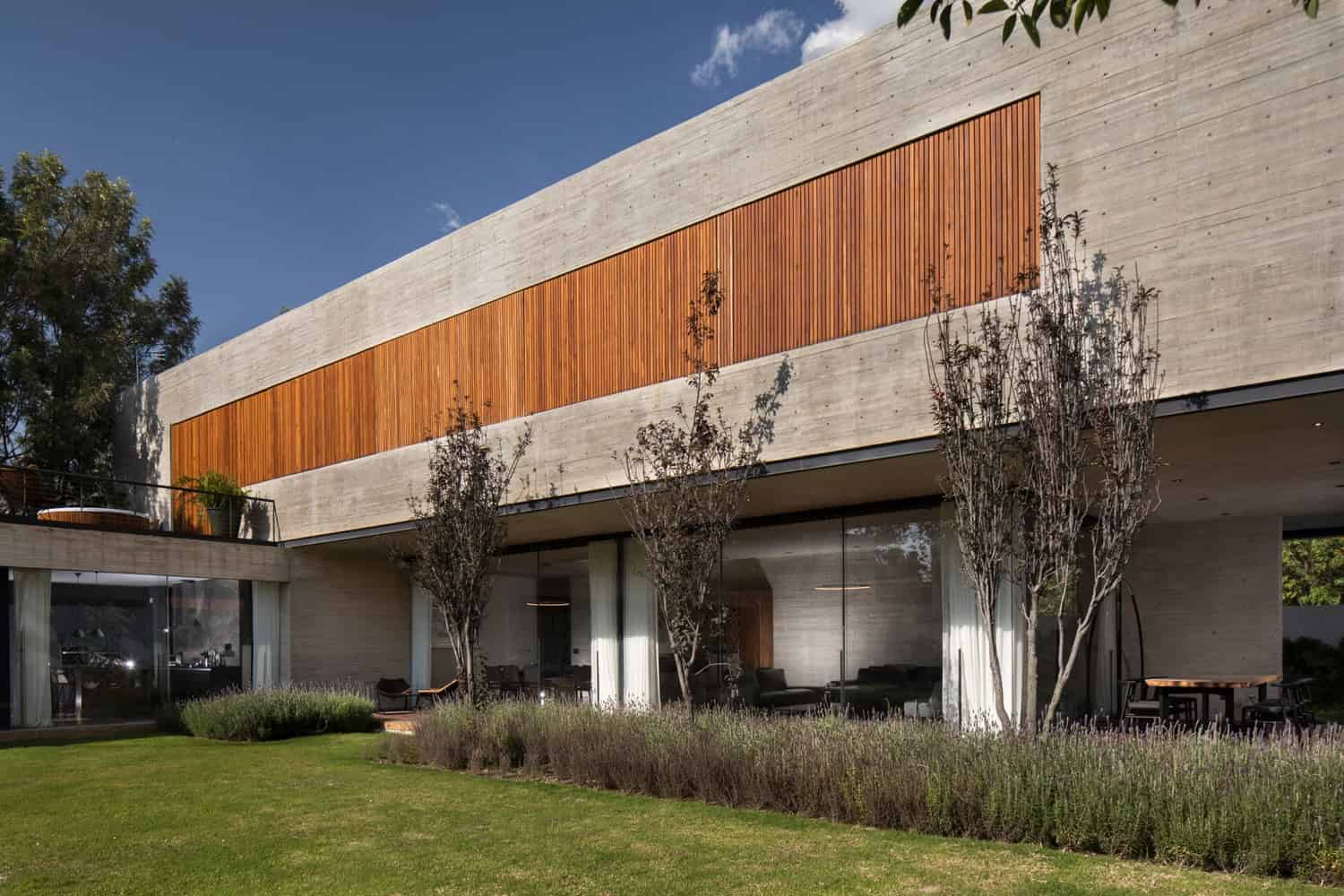

Regarding facades, double facades were used as solar protection, creating intermediate areas that serve as ventilation spaces or as terraces. Following the same intention, a series of shutters were used on the upper floor to avoid solar incidence over the building, which allows architecture to transform from a completely blind facade to an open one, an interesting effect that is defined according to its inhabitants’ needs.
