Project: Mirador House
Architects: Cristobal Noguera & Abarca + Palma
Location: Frutillar, Chile
Area: 1,506 sf
Year: 2019
Photographs by: Andrés Maturana
Mirador House by Cristobal Noguera & Abarca + Palma
Mirador House, located in Frutillar, Chile, is a shining example of efficient and elegant architecture. This single-family residence, covering approximately 1,506 square feet, maximizes both space and energy. Its compact design, based on a nearly square floor plan, minimizes circulation, with rooms oriented around a central living area, seamlessly connecting the kitchen and primary living space.
Single-family house located in the Frutillar commune, X Region, situated between lines of trees and livestock hills facing Lake Llanquihue. The project’s strategies are based on achieving spatial, economic, and energy efficiency.

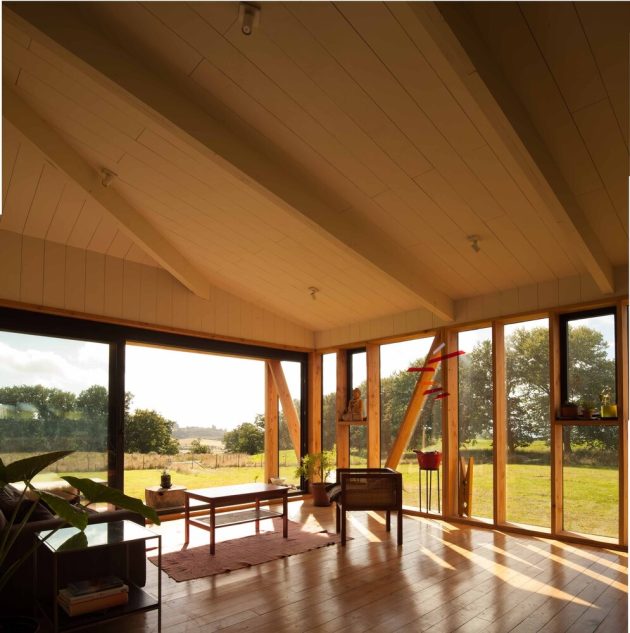

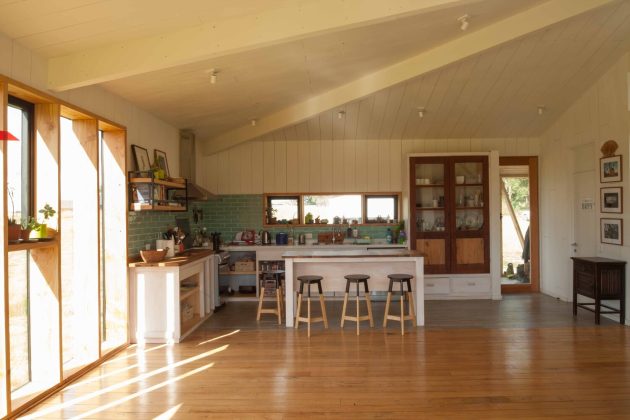

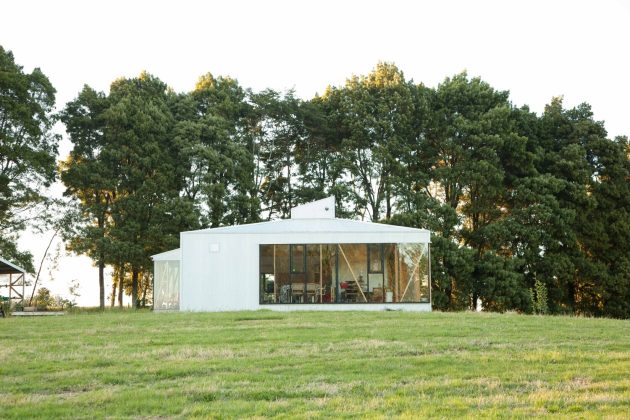

In relation to this, a compact volume of 140m2 is proposed, with an almost square floor plan, without circulation, where the rooms are articulated through a central space that contains the living room. This central space composes a continuity with the kitchen and the main living room, open to the outside overlooking the lake and the volcanoes.

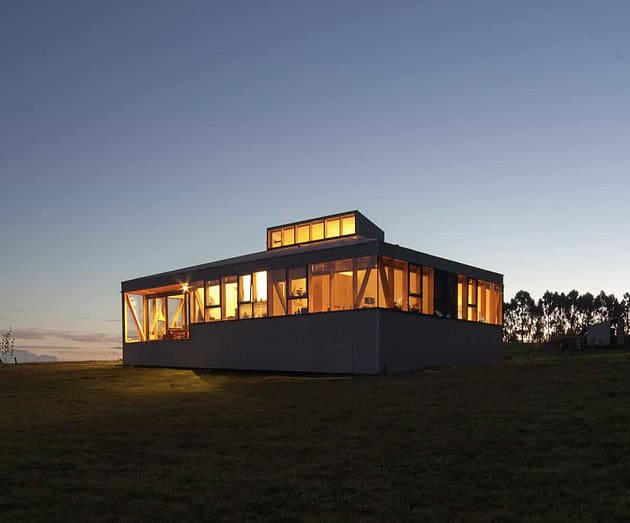

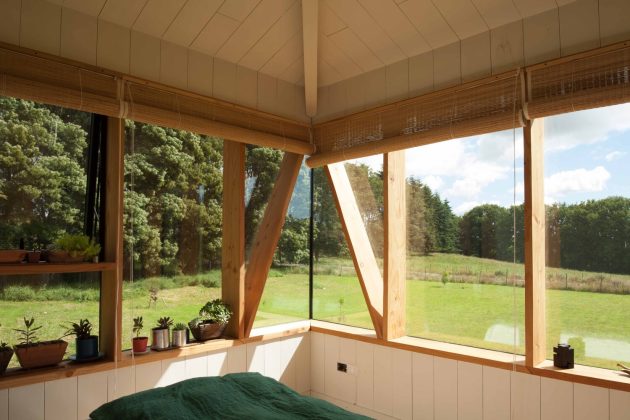

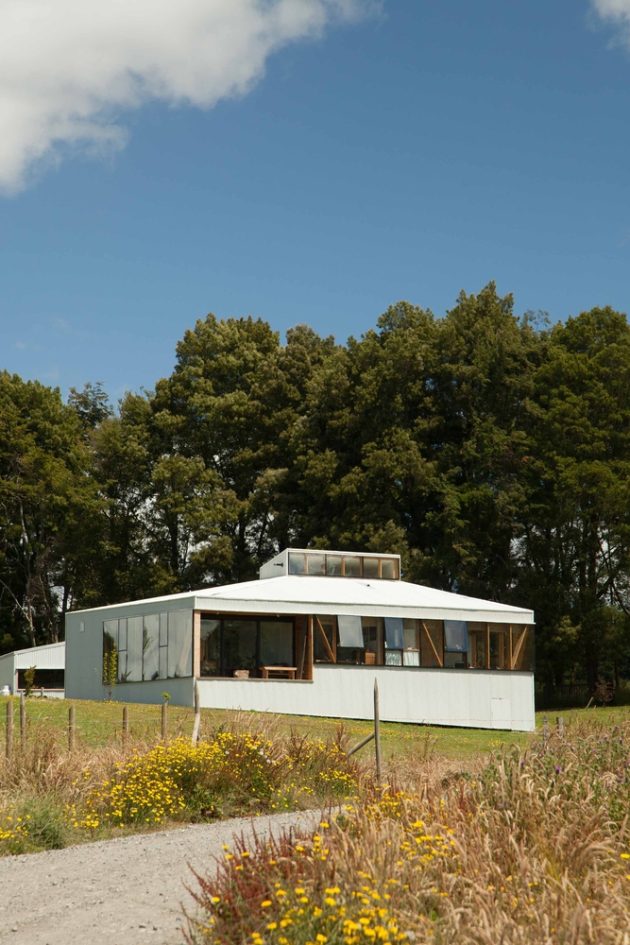

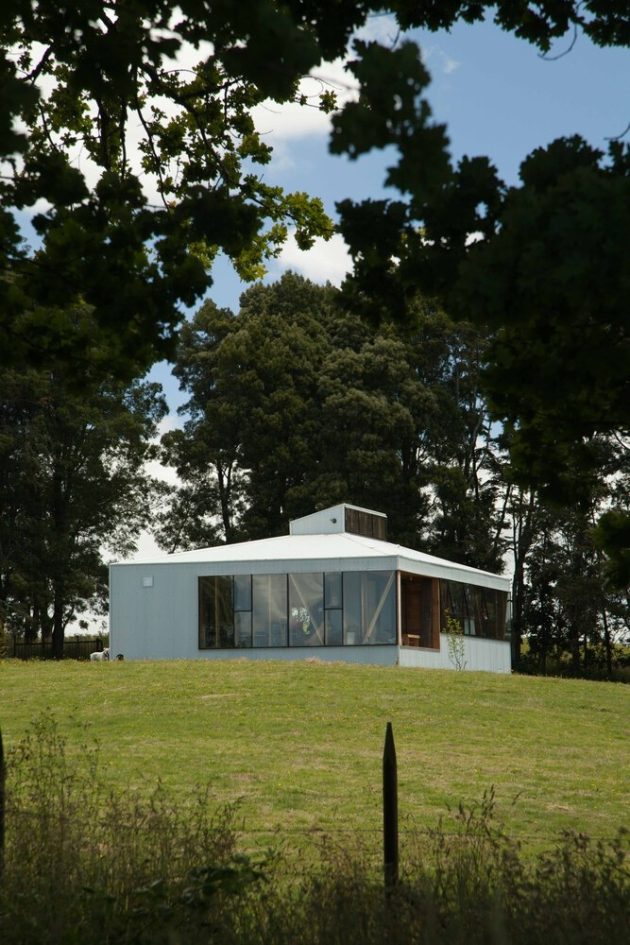

In the search to maximize the exposure of the facades to the sun, the volume is located with one of its edges to the north, exposing the main facade and the bedrooms to the solar trajectory. A continuous window that surrounds the volume provides light to the interior, as well as capturing the sun in winter.

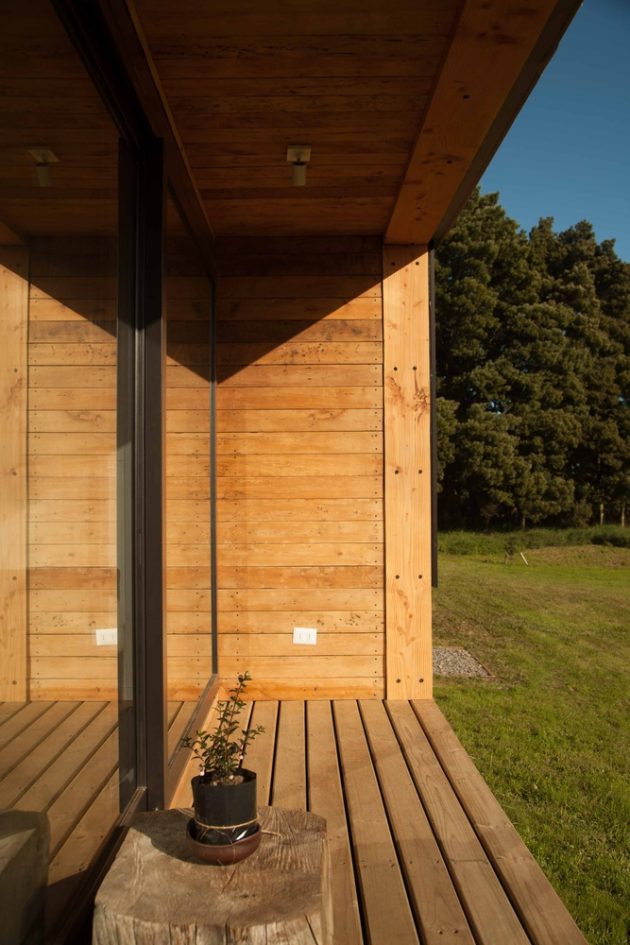

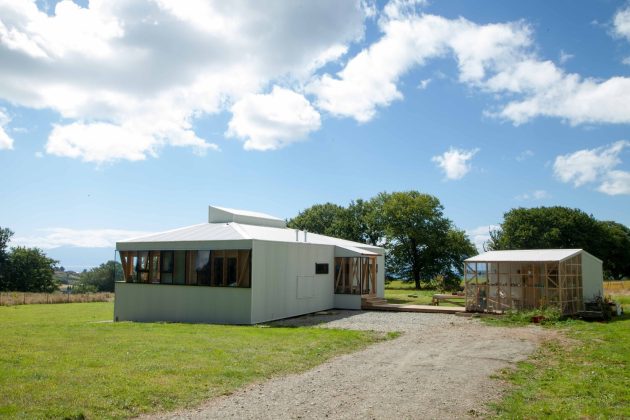

The access predominates on the rear facade with a “chiflonera” volume in glass and wood, which connects through a deck with the garden house volume.

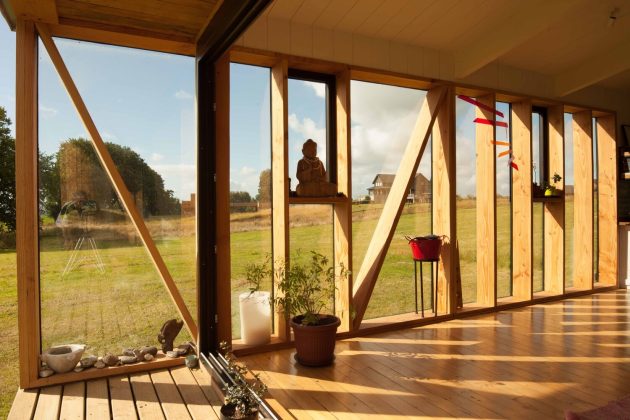

The construction proposal consists of a mixed prefabricated system based on SIP panels as a thermal envelope, with 160mm of insulation. This is combined with wooden structures for pillars, diagonals, beams, and window centers.

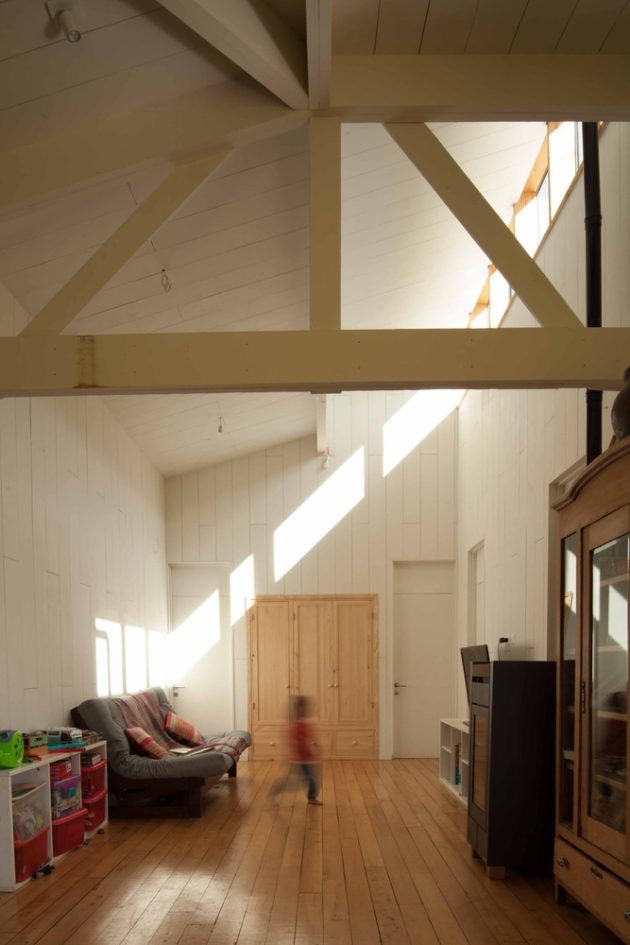

The foundations are composed of a system of isolated elements, which support a structure of wooden beams that receive the SIP slab. The woods are shown in windows and skylights, combined with a white base for walls and ceilings in the interiors.

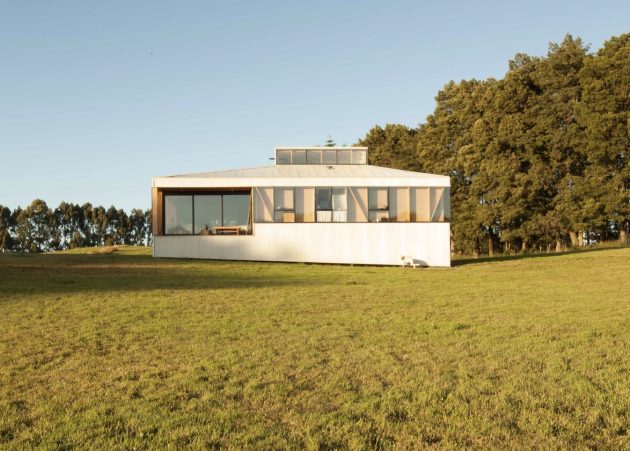

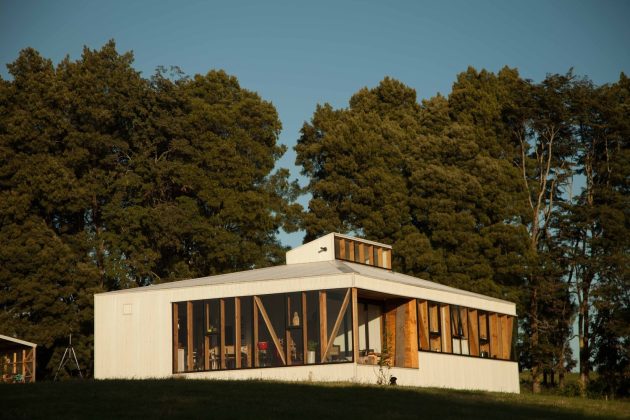

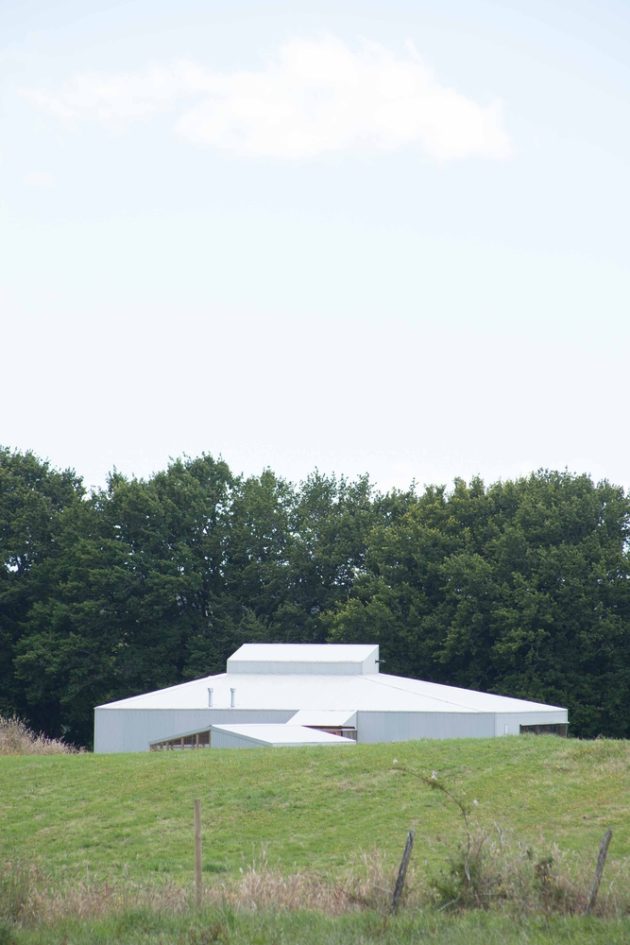

The exterior cladding of micro-corrugated white zinc, with ventilated mounting, provides material continuity on all its facades. In addition, exposed wood elements behind the glazed facades connect the house with the landscape and the views.
